Section 26 (Vehicle Dynamics Control (VDC) Diagnostics)
>>
Control Module I/O Signal
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Module I/O Signal: Wiring Diagram
WARNING:
This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

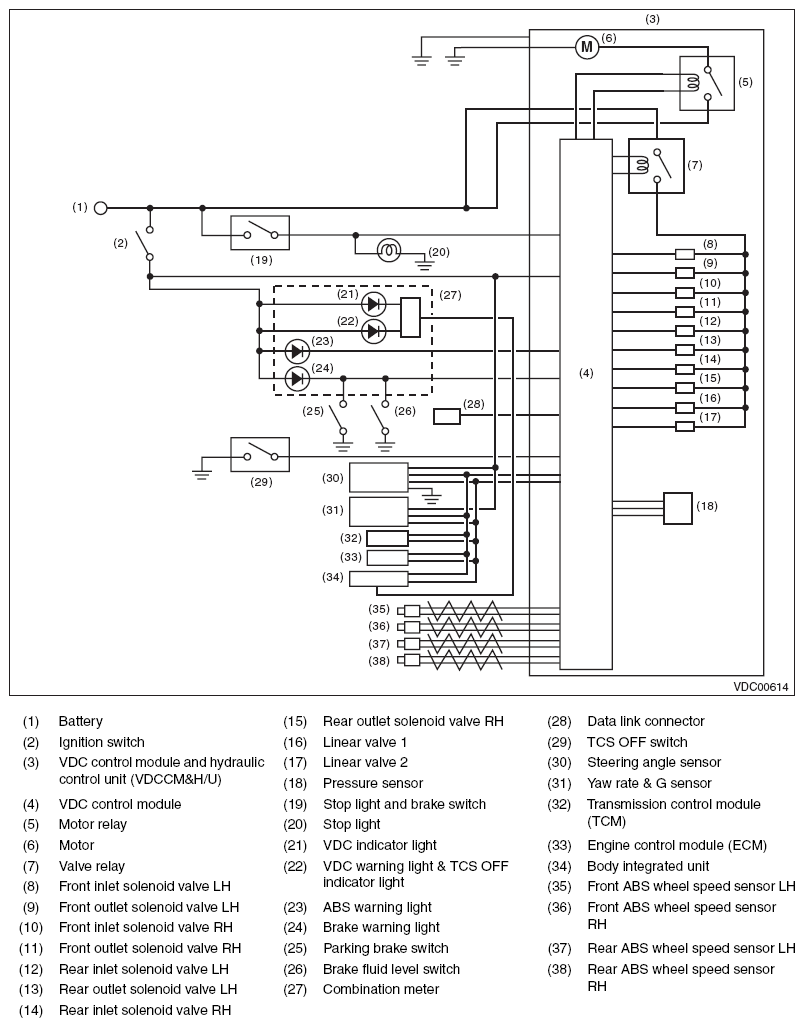

Fig 1: Control Module I/O Signal Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
