Wheel Alignment: Inspection: Notes
WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
Check the following items before performing the wheel alignment measurement.
Check items before measuring wheel alignment:
- Tire inflation pressure
- Uneven wear of RH and LH tires, or difference of sizes
- Tire runout
- Excessive play and wear of ball joint
- Excessive play and wear of tie-rod end
- Excessive play of wheel bearing
- Right and left wheel base imbalance
- Deformation and excessive play of steering link
- Deformation and excessive play of suspension parts

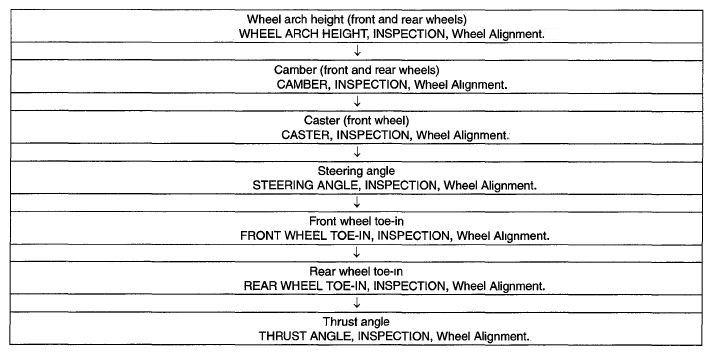

Check, adjust and measure the wheel alignment in accordance with the procedures indicated in the illustration.
