Stop Light Switch: Removal

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from the battery.
  2. Disconnect the stop light switch connector.
  3. Loosen the nuts, unscrew the stop light switch, and remove stop light switch.

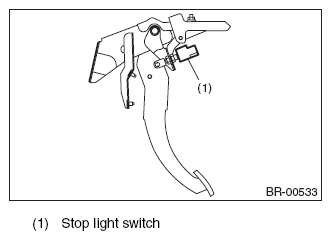

Fig 1: Identifying Stop Light Switch
G07926164Courtesy of SUBARU OF AMERICA, INC.
