Section 14 (Automatic Transmission - Mechanism & Function (5AT)): Cross-section: Cross-Section

WARNING: This page is about a different variant/trim than selected.

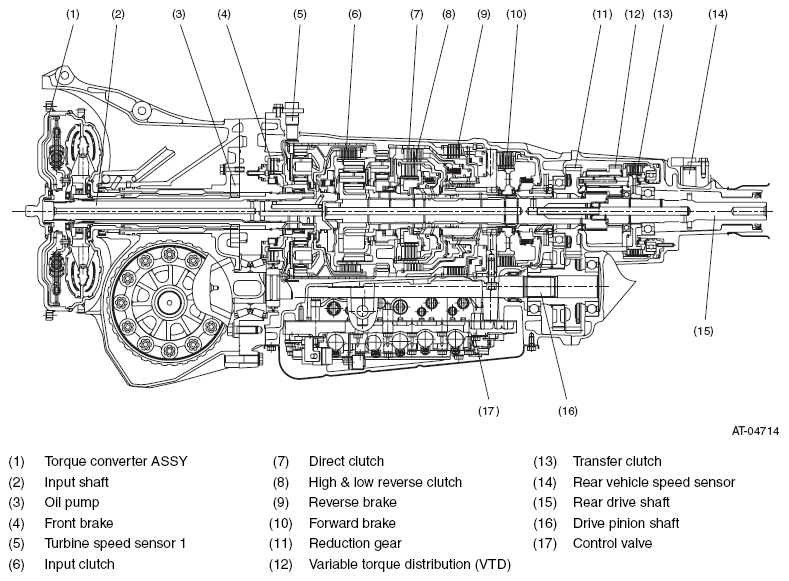

Fig 1: Cross-Sectional View Of Automatic Transmission
G08260274Courtesy of SUBARU OF AMERICA, INC.
