Components With Torque Specifications
WARNING: This page is about a different variant/trim than selected.

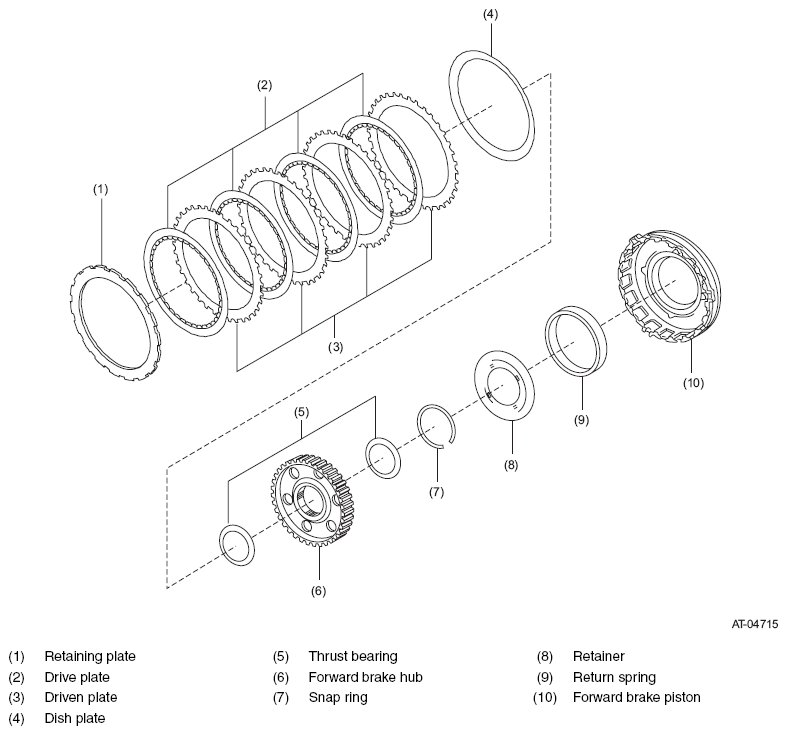

The forward brake consists of forward brake hub, forward brake piston, return spring, dish plate, drive plates, driven plates and retaining plate.
The forward brake restrains reverse rotation of mid sun gear at 1st and 2nd speed. (Forward brake cannot be disassembled.)
