Gear Train: Structure
WARNING: This page is about a different variant/trim than selected.

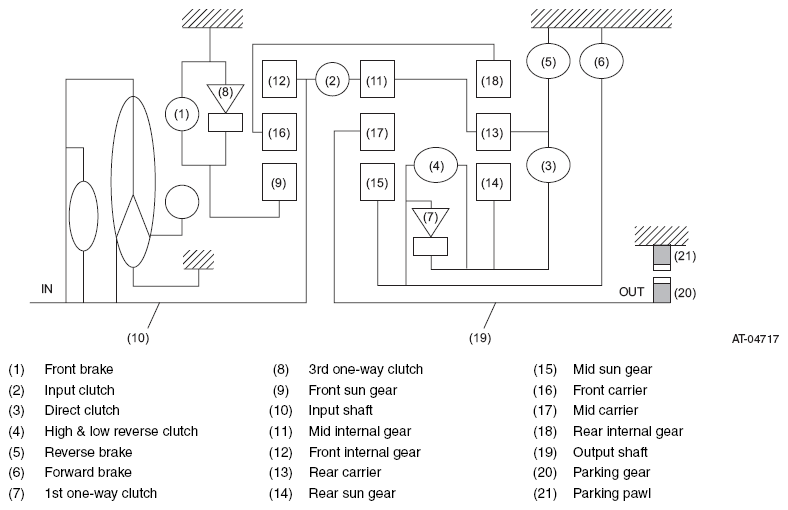

The gear train consists of three sets of planetary gears, three sets of multi-plate clutches, three sets of multi-plate brakes and two sets of one-way clutches.
Courtesy of SUBARU OF AMERICA, INC.
