ATF Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

This temperature sensor uses thermistor and is installed on the control valve body. The ATF temperature sensor detects the ATF temperature and outputs it as electrical resistance signal.

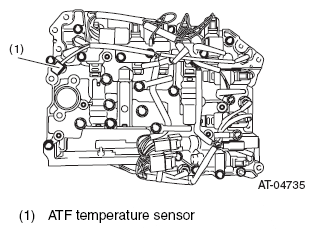

Fig 1: Identifying ATF Temperature Sensor
G08260293Courtesy of SUBARU OF AMERICA, INC.
