Engine Mounting: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the bracket to the cradle.

    Tightening torque:

    60 N.m (6.1 kgf-m, 44.3 ft-lb)

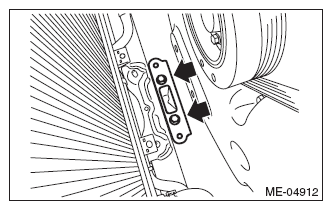

    Fig 1: Locating Cradle Mounting Bracket
    G07912652Courtesy of SUBARU OF AMERICA, INC.
  2. Install front mounting bracket to the cradle.

    Tightening torque:

    60 N.m (6.1 kgf-m, 44.3 ft-lb)

    Fig 2: Locating Front Mounting Bracket With Mounting Nuts
    G07912651Courtesy of SUBARU OF AMERICA, INC.
  3. Install the front mount.

    Tightening torque:

    T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

    T2: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

    Fig 3: Locating Front Mount With Mounting Nuts
    G07912655Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the lifting device and wire ropes.

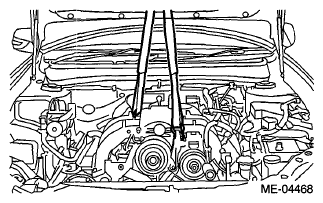

    Fig 4: Identifying Lifting Device And Wire Ropes
    G06649729Courtesy of SUBARU OF AMERICA, INC.
  5. Install the radiator main fan & fan motor and radiator sub fan & fan motor. Refer to RADIATOR MAIN FAN AND FAN MOTOR . Refer to RADIATOR SUB FAN AND FAN MOTOR .
  6. Lift up the vehicle.
  7. Install the under cover. Refer to FRONT UNDER COVER .
  8. Lower the vehicle.
  9. Remove the ST.

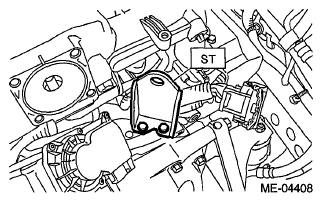

    Fig 5: Removing Throttle Body From Intake Manifold
    G06649741Courtesy of SUBARU OF AMERICA, INC.
  10. Install the throttle body to intake manifold.
    NOTE: Use a new gasket.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  11. Install the engine hanger bracket.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

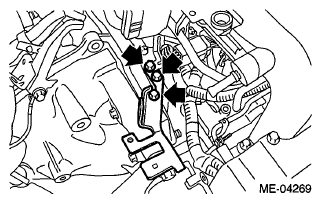

    Fig 6: Locating Engine Hanger Bracket Mounting Bolts
    G06649723Courtesy of SUBARU OF AMERICA, INC.
  12. Install the engine harness connector to the engine hanger bracket.

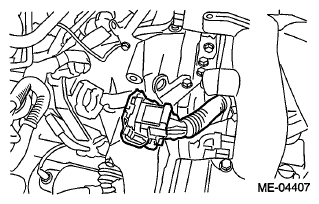

    Fig 7: Identifying Engine Harness Connector
    G06649722Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the connector to the throttle body.

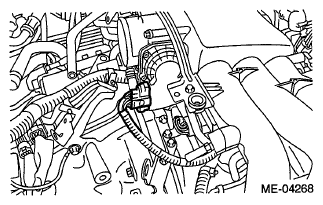

    Fig 8: Identifying Throttle Body Connector
    G06649721Courtesy of SUBARU OF AMERICA, INC.
  14. Connect the engine harness.
    Fig 9: Identifying Engine Harness
    G06649720Courtesy of SUBARU OF AMERICA, INC.
  15. Attach the grille bracket.
    Fig 10: Locating Grille Bracket Mounting Pins
    G07912600Courtesy of SUBARU OF AMERICA, INC.
  16. Install the air intake duct, air cleaner case and air intake boot assembly. Refer to AIR INTAKE DUCT . Refer to AIR CLEANER CASE . Refer to AIR INTAKE BOOT .
  17. Connect the ground cable to battery.
  18. Fill engine coolant. Refer to ENGINE COOLANT .
  19. Install the collector cover.
  20. Change the front hood damper bolt mounting position from (B) to (A), and completely close the front hood.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

    Fig 11: Identifying Front Hood Damper Bolt Mounting Position
    G06650639Courtesy of SUBARU OF AMERICA, INC.
