Cylinder Block

WARNING: This page is about a different variant/trim than selected.

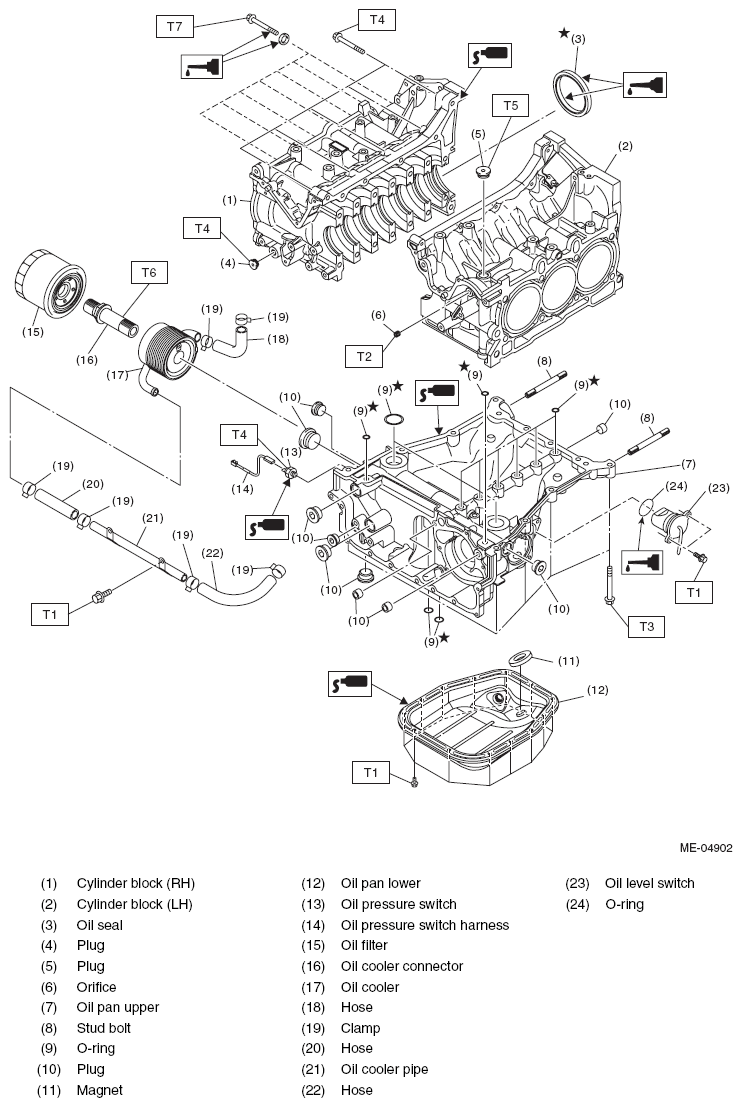

Fig 1: Exploded View Of Cylinder Block

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 17 (1.7, 12.5)

T3: 18 (1.8, 13.3)

T4: 25 (2.5, 18.4)

T5: 37 (3.8, 27.3)

T6: 54 (5.5, 39.8)

T7: Refer to , CYLINDER BLOCK .
