Airbag System - Mechanism & Function
>>
System Components and Operation
>>
System Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Components

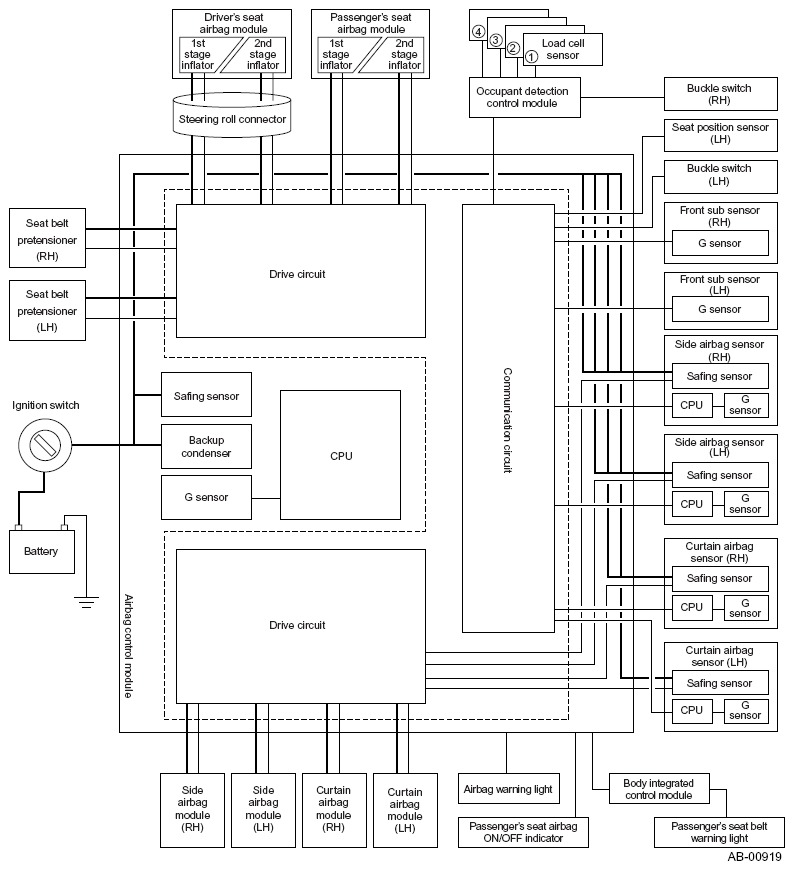

Fig 1: Airbag System Communication Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
