Front Lateral Link: Assembly

  1. Before assembly, inspect the following items and replace any faulty part with a new one.
    • Visually check the front lateral link for damage and deformation.
    • Visually check the bushing for abnormal cracks, fatigue or damage.
    • Visually check the dust cover on the ball joint for damage.
  2. Using the ST, press the bushing into place.
    CAUTION: Make sure to press the bushing straight in.

    PREPARATION TOOL:

    ST-A & ST-B: INSTALLER & REMOVER (20299AE000)

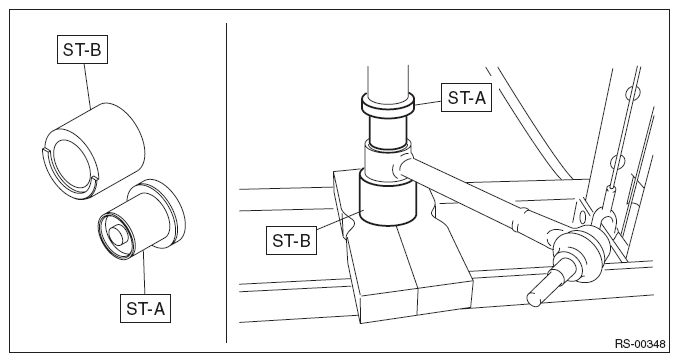

    Fig 1: Pressing Bushing Using ST
    G07914030Courtesy of SUBARU OF AMERICA, INC.
