Clutch Assembly

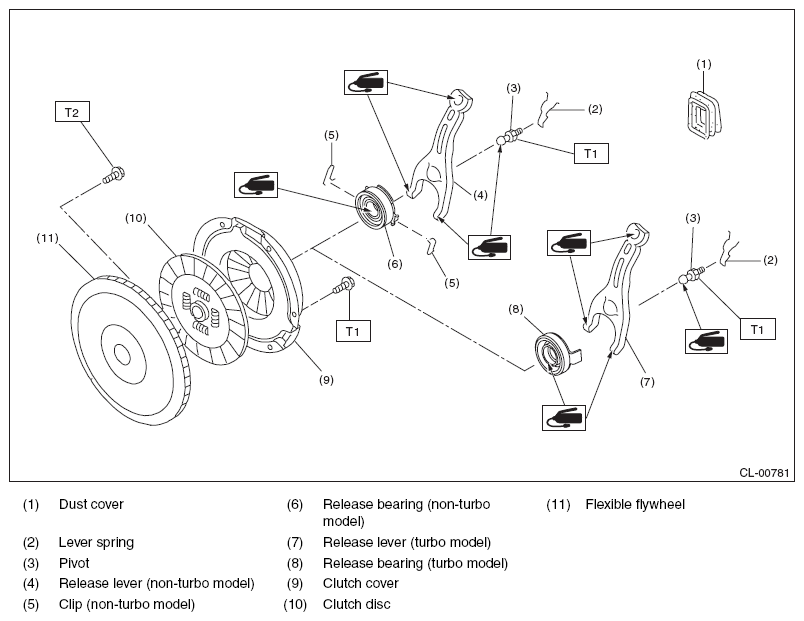

Fig 1: Clutch Assembly Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 75 (7.6, 55.3)
