Master Cylinder

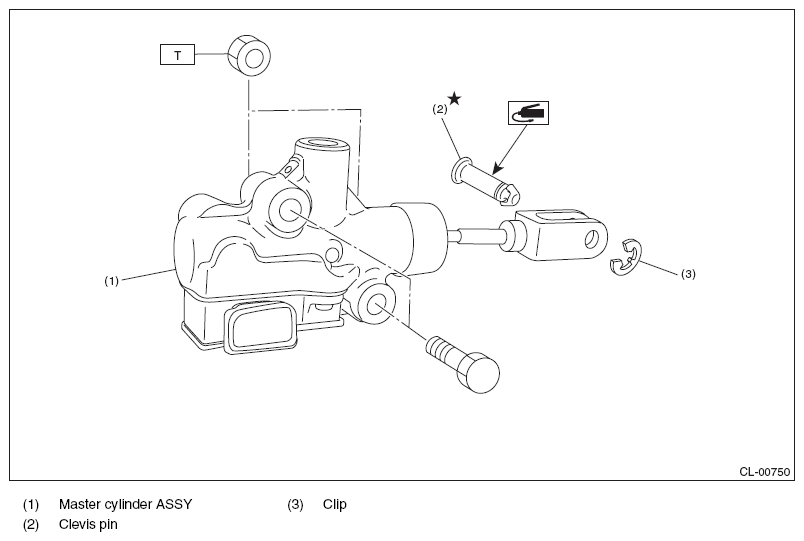

Fig 1: Master Cylinder Replacement Components With Torque Specifications
G07913834Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
