Operating Cylinder

• Non-turbo model

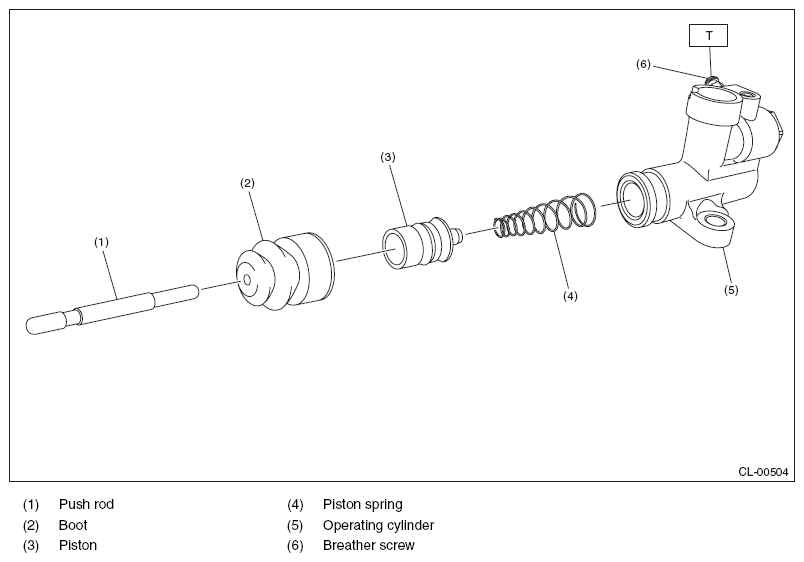

Fig 1: Operating Cylinder Replacement Components With Torque Specifications (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8, 5.8)

• Turbo model

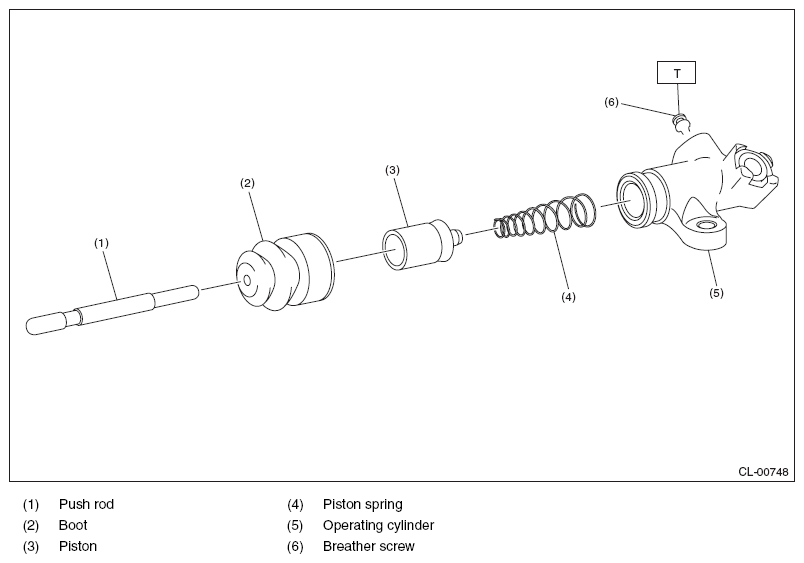

Fig 2: Operating Cylinder Replacement Components With Torque Specifications (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8, 5.8)
