Main Shaft For Single-Range

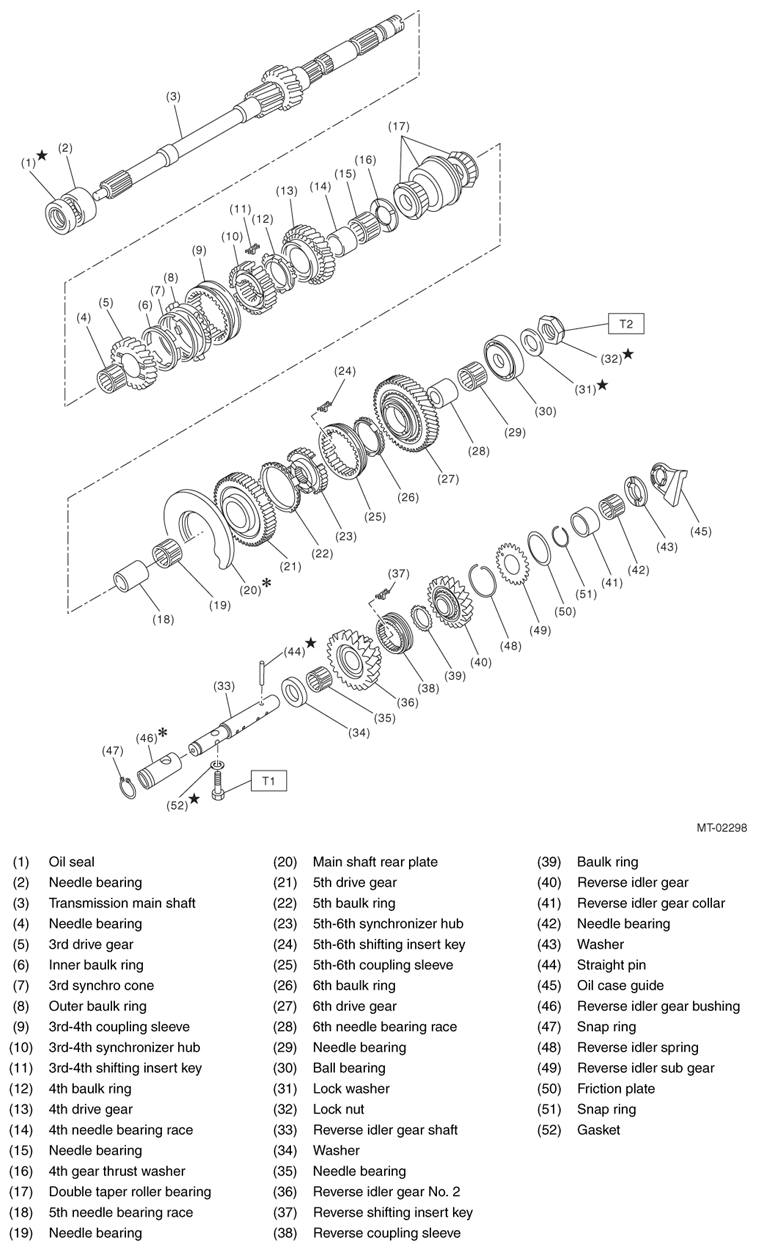

Fig 1: Exploded View Of Main Shaft For Single-Range

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 160 (16.3, 118.0)
