Shift Link Assembly

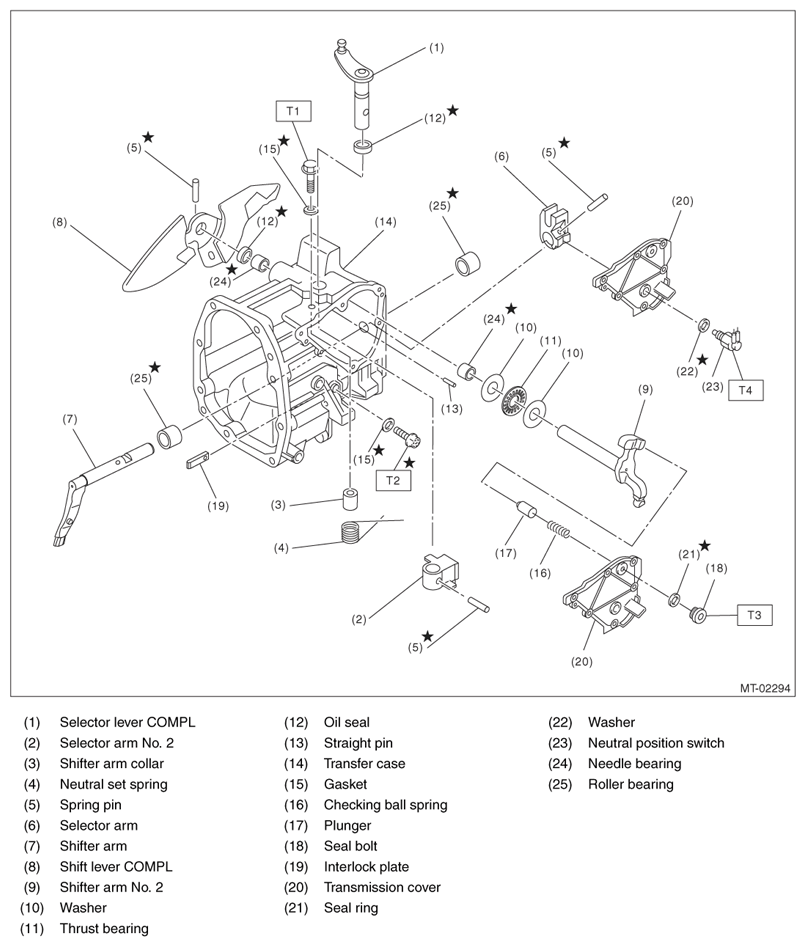

Fig 1: Exploded View Of Shift Link Assembly

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 20 (2.0, 14.8)

T3: 25 (2.5, 18.4)

T4: 32.3 (3.3, 23.8)
