Radiator Panel (Total Replacement)

Panel Replacement

Radiator Panel (total replacement)

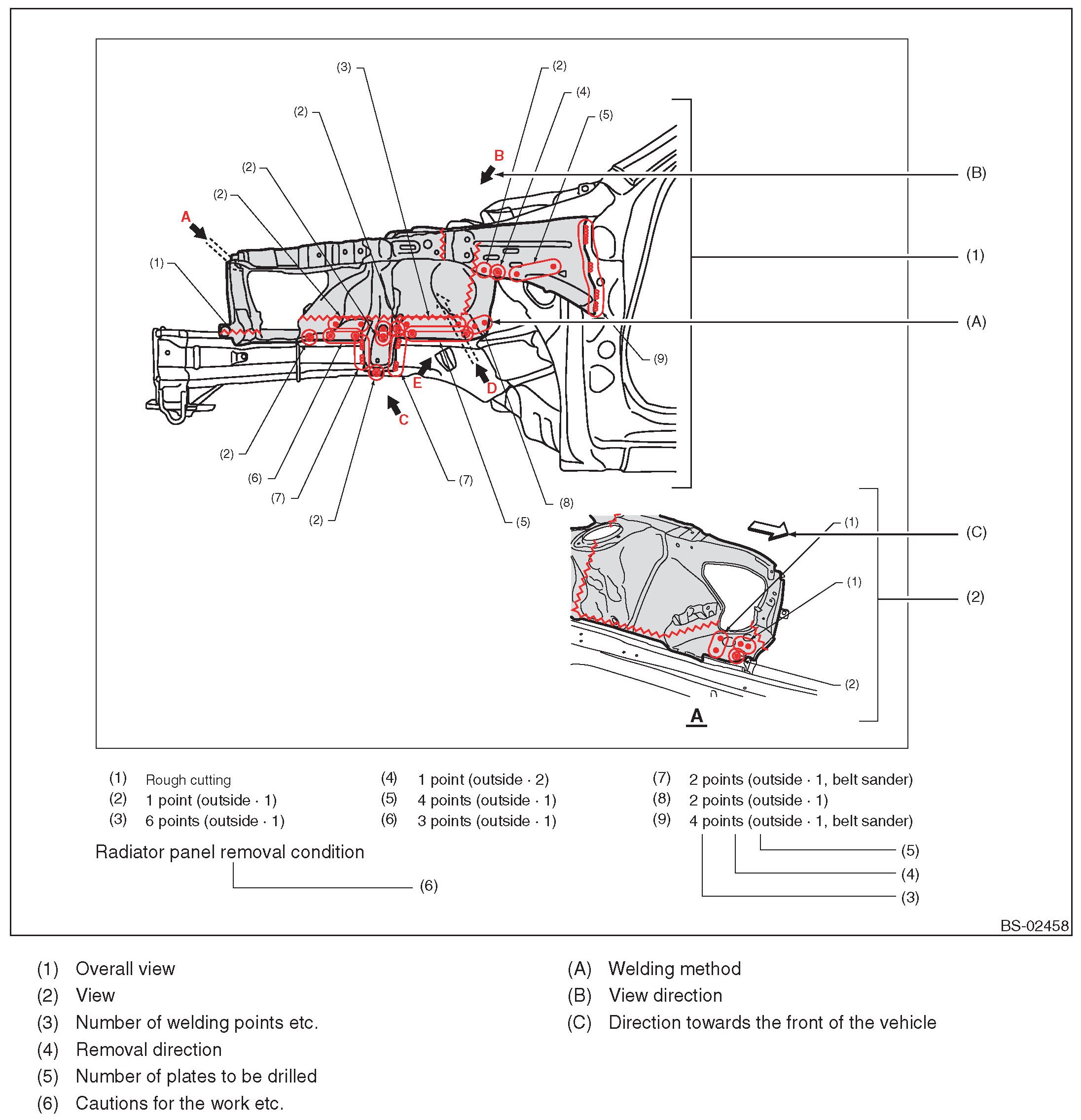

ILLUSTRATION EXAMPLE
- Symbols and number of points indicate the welding method and the number of welding points. Text in brackets indicates the direction for removal of welded parts, and numbers indicate the number of plates to be drilled in panels of welded parts to be removed.
- An enclosure by a broken line indicates work from the opposite side (rear side).

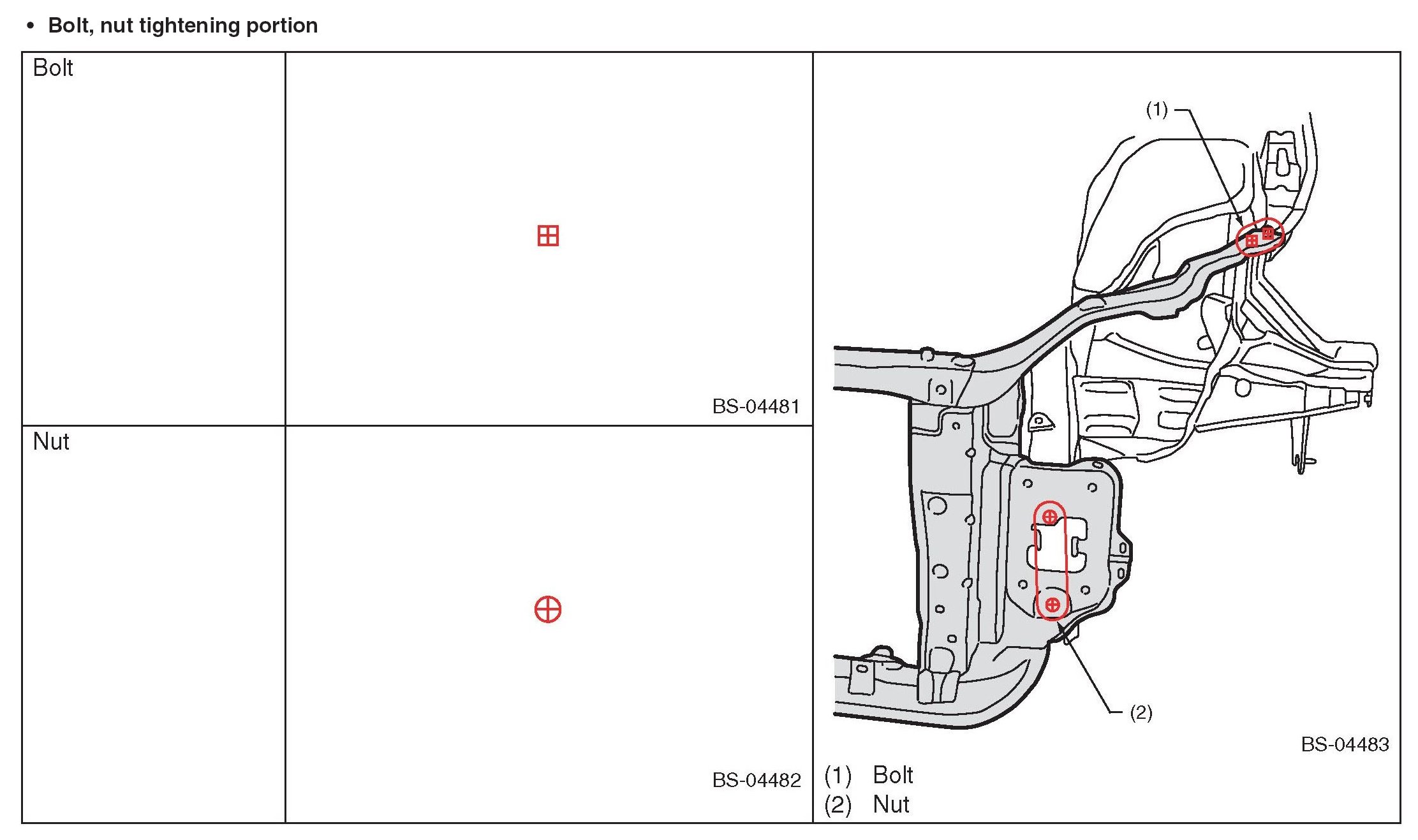

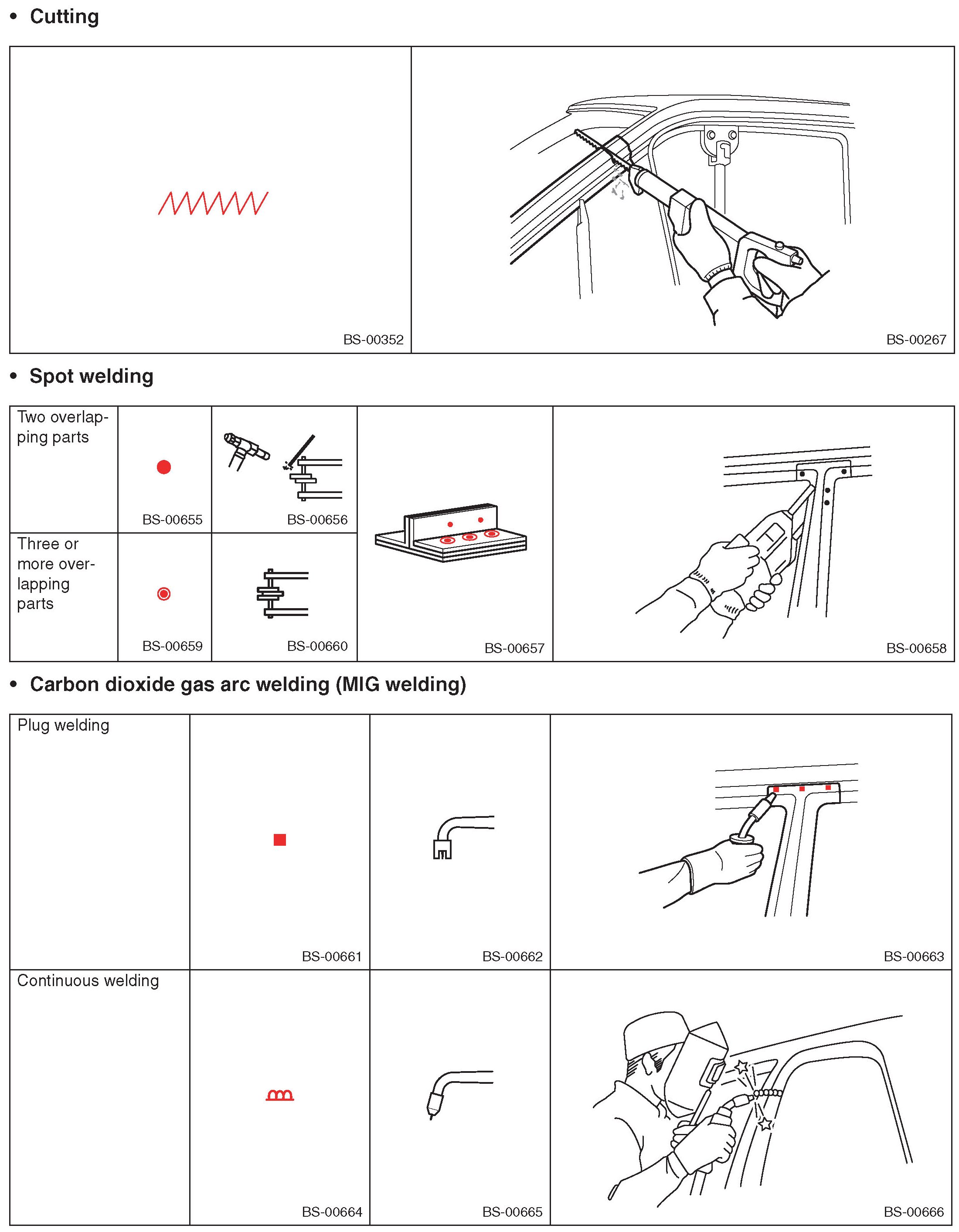

MEANING OF SYMBOLS










REMOVAL

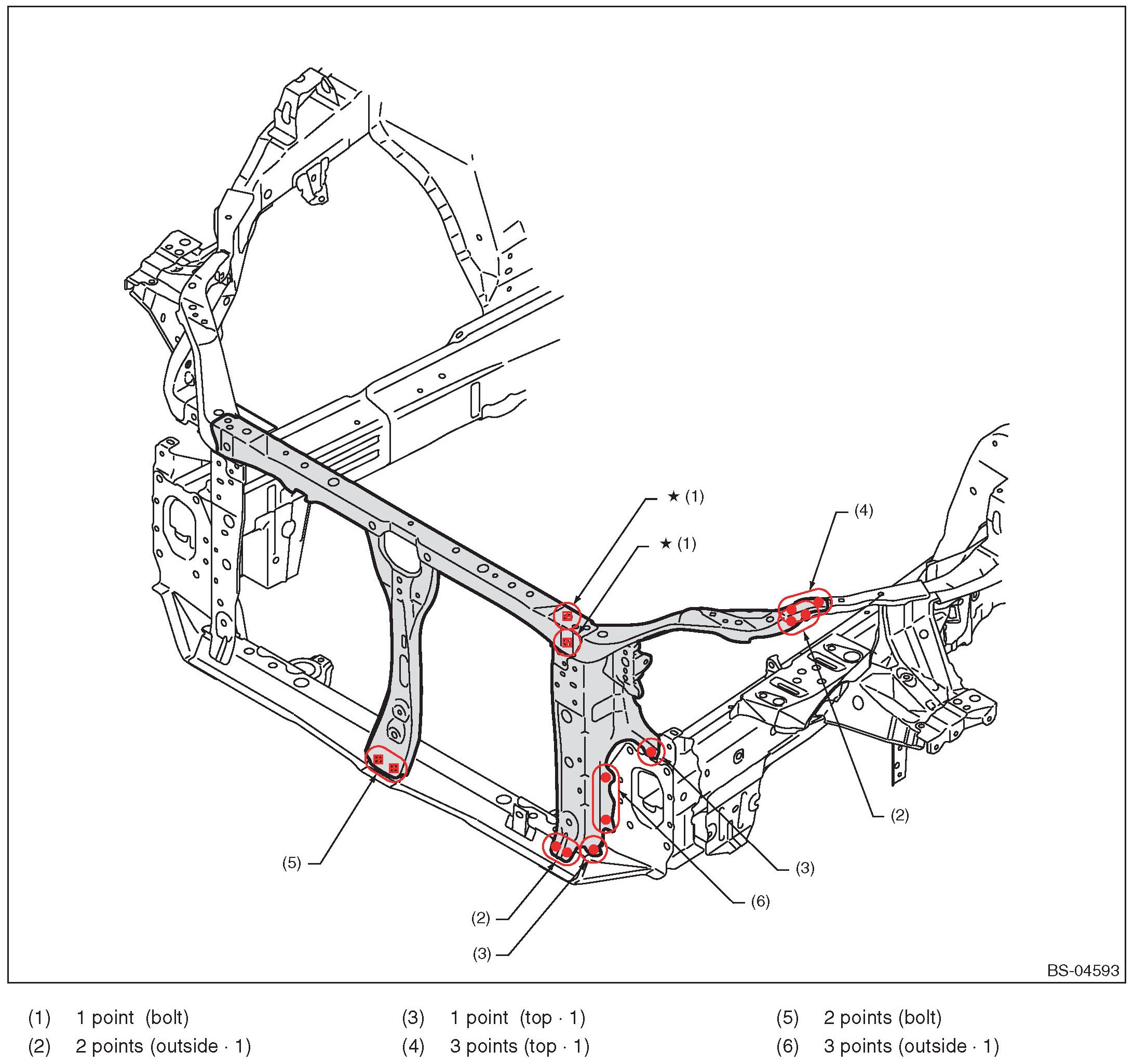

- Overall view







For locations marked by *, the welding method and the number of welding points are the same on the left and the right.

INSTALLATION

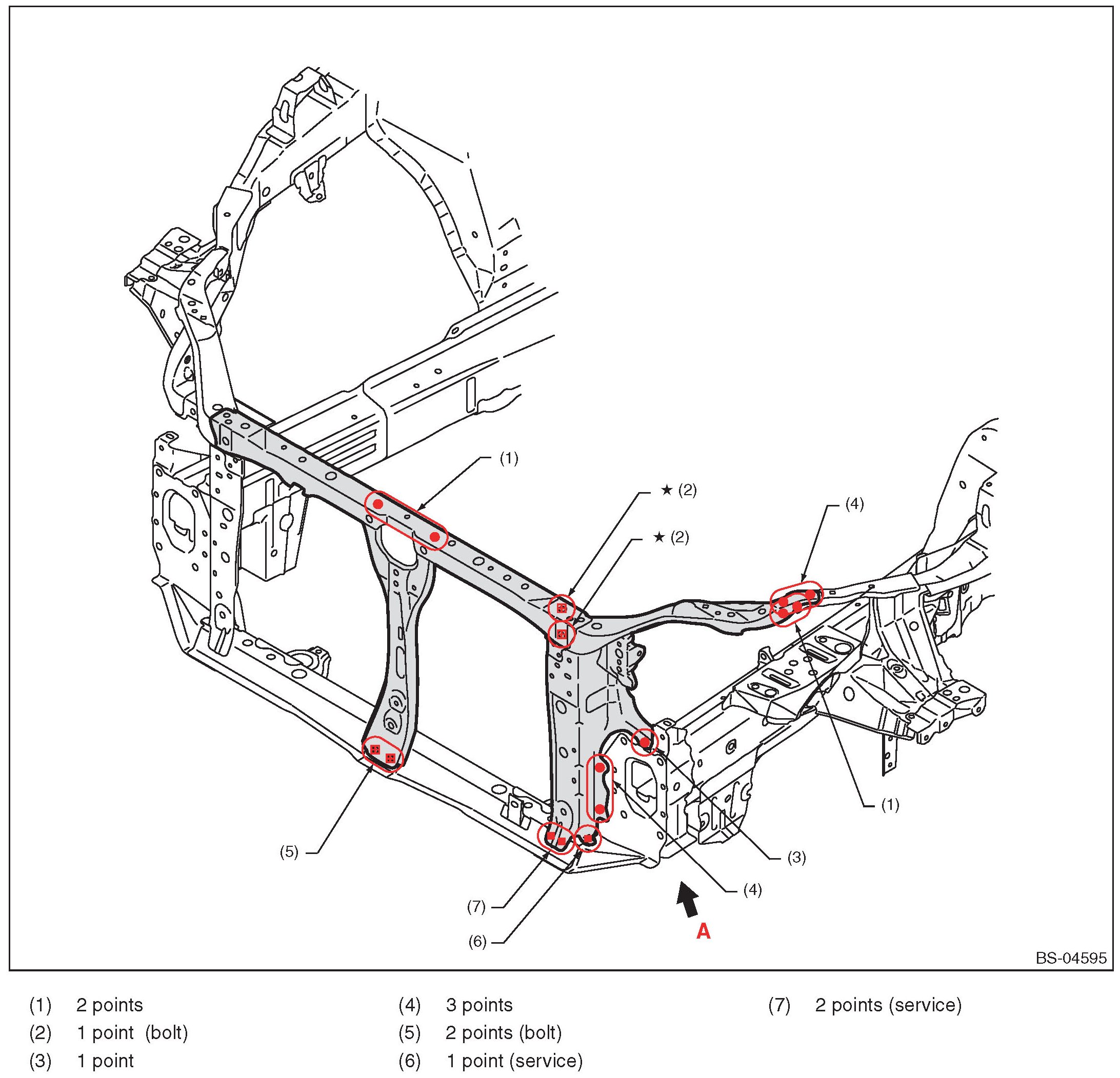

- Overall view







For locations marked by *, the welding method and the number of welding points are the same on the left and the right.

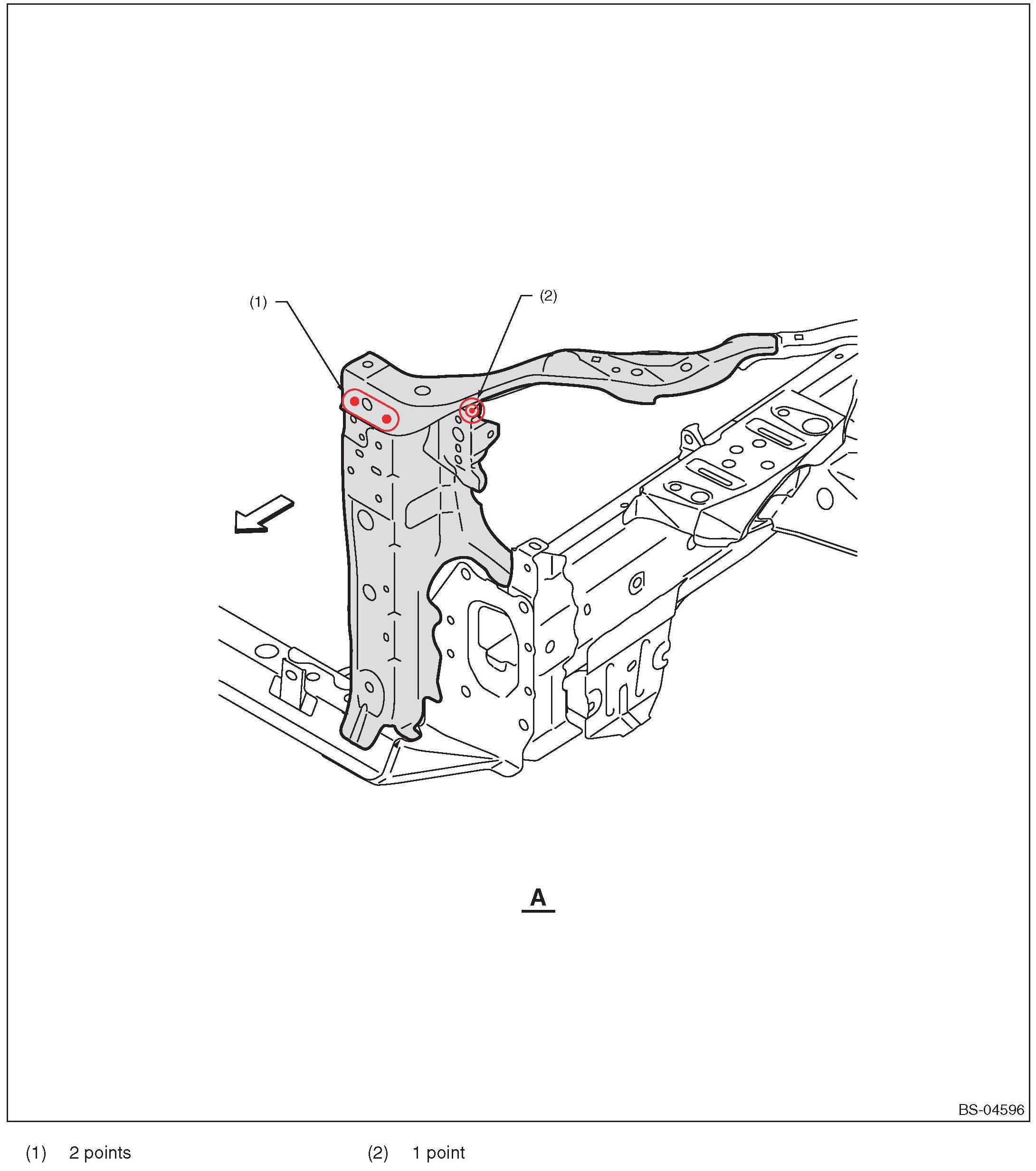

- Views
