Blower Motor Resistor: Service and Repair

BLOWER RESISTOR (MANUAL A/C MODEL)

REMOVAL
1. Disconnect the ground cable from battery.

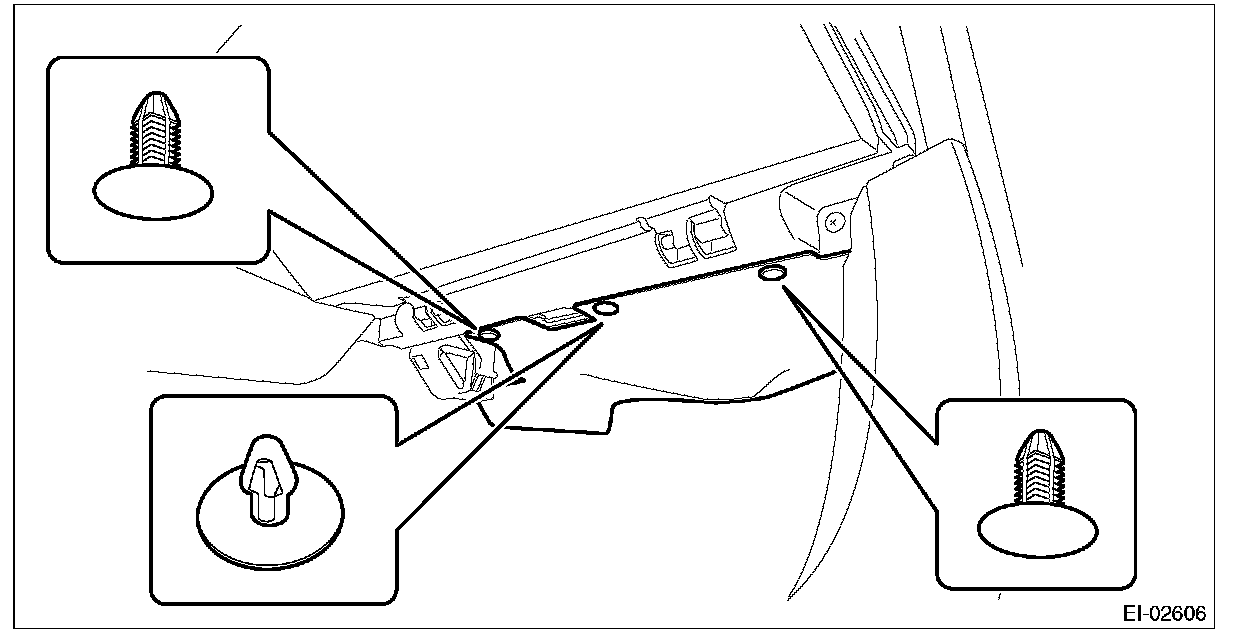

2. Remove the clips, and remove the glove box under cover.

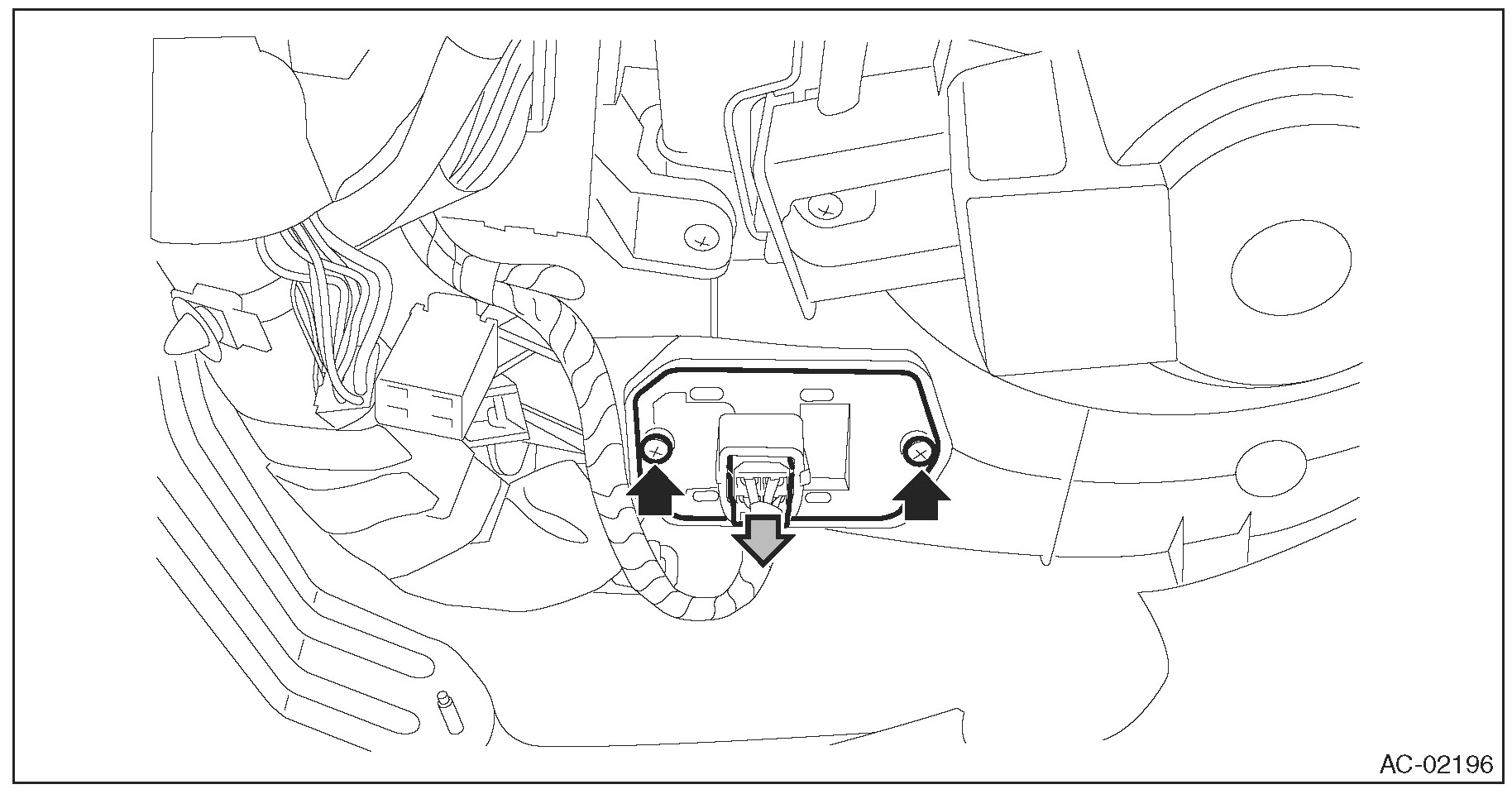

3. Remove the blower resistor.
1. Disconnect the connector.
2. Remove the screw and remove the blower resistor.






INSTALLATION
Install each part in the reverse order of removal.
