Removal

TPMS & KEYLESS CONTROL MODULE

REMOVAL

NOTE:
TPMS control module is integrated with the keyless entry control module.

Sedan model
1) Disconnect the ground cable from battery.
2) Remove the rear shelf trim.

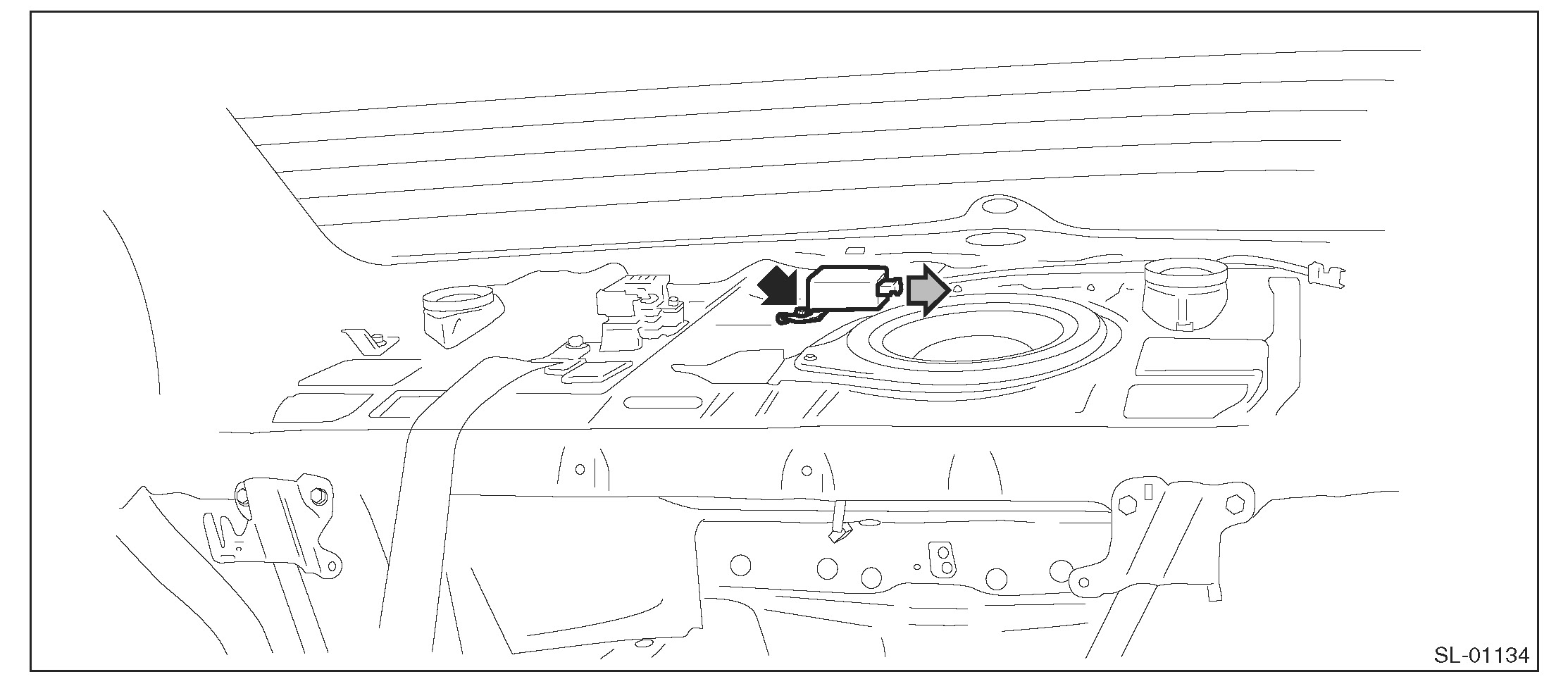

3) Remove the TPMS & keyless control module.
(1) Disconnect the connector.
(2) Remove the bolt and then remove the TPMS & keyless control module.





OUTBACK model
1) Disconnect the ground cable from battery.
2) Remove the rear quarter trim LH.

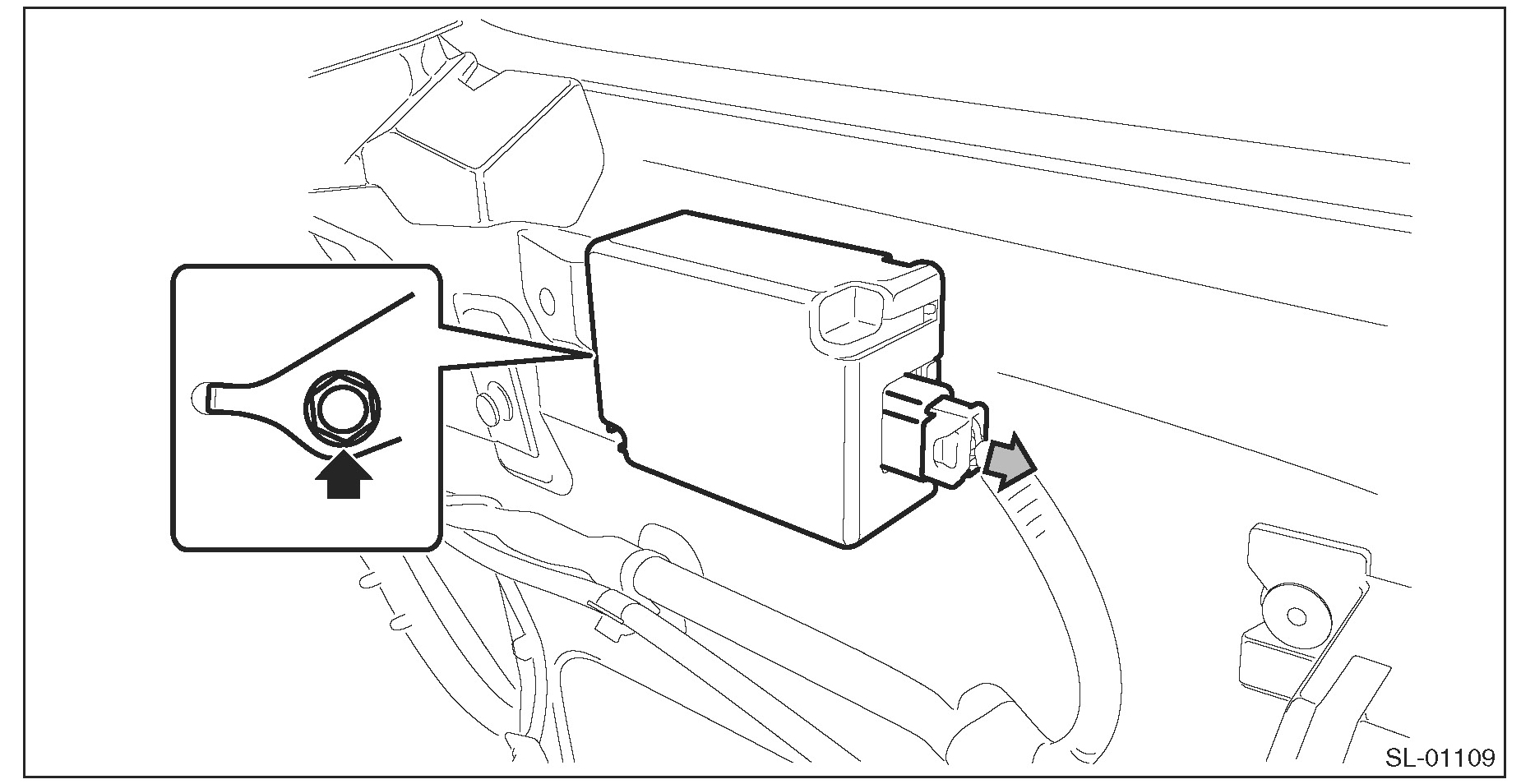

3) Remove the TPMS & keyless control module.
(1) Disconnect the connector.
(2) Remove the bolt and then remove the TPMS & keyless control module.
