Wiper Switch: Service and Repair

Combination Switch (Wiper)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the steering column cover.

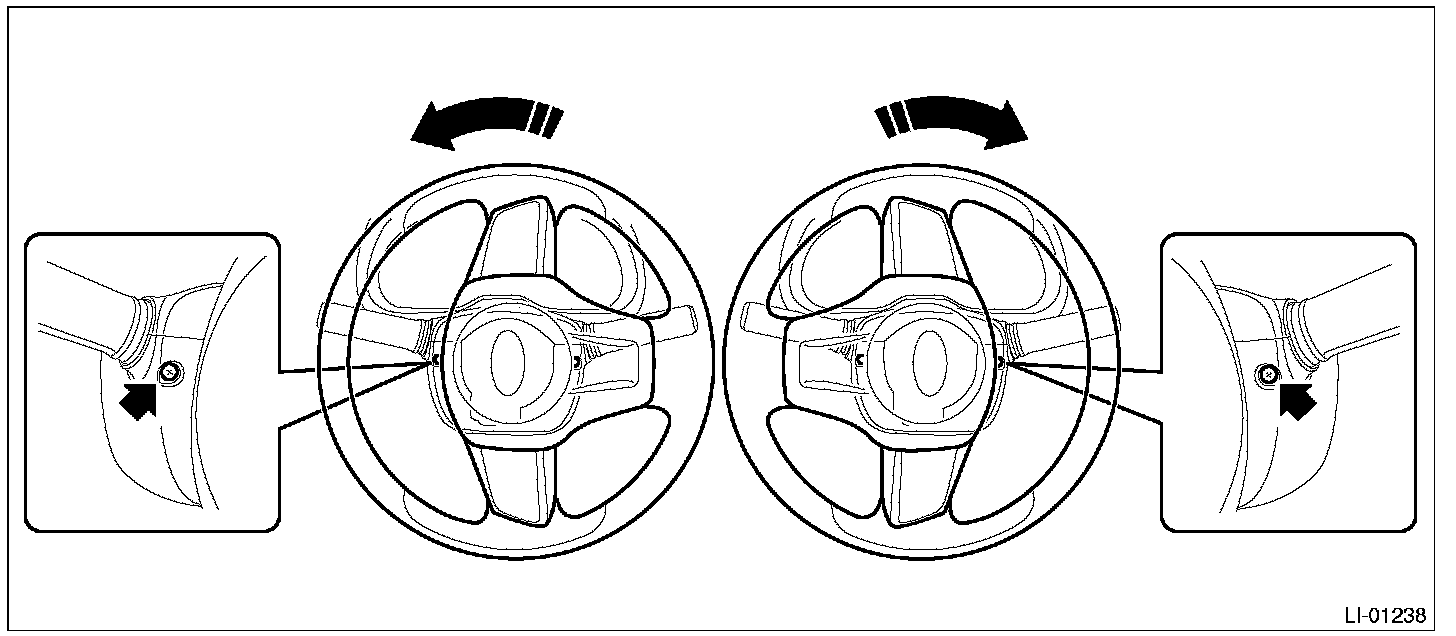

1. Remove the screws by turning the steering wheel to right and left.

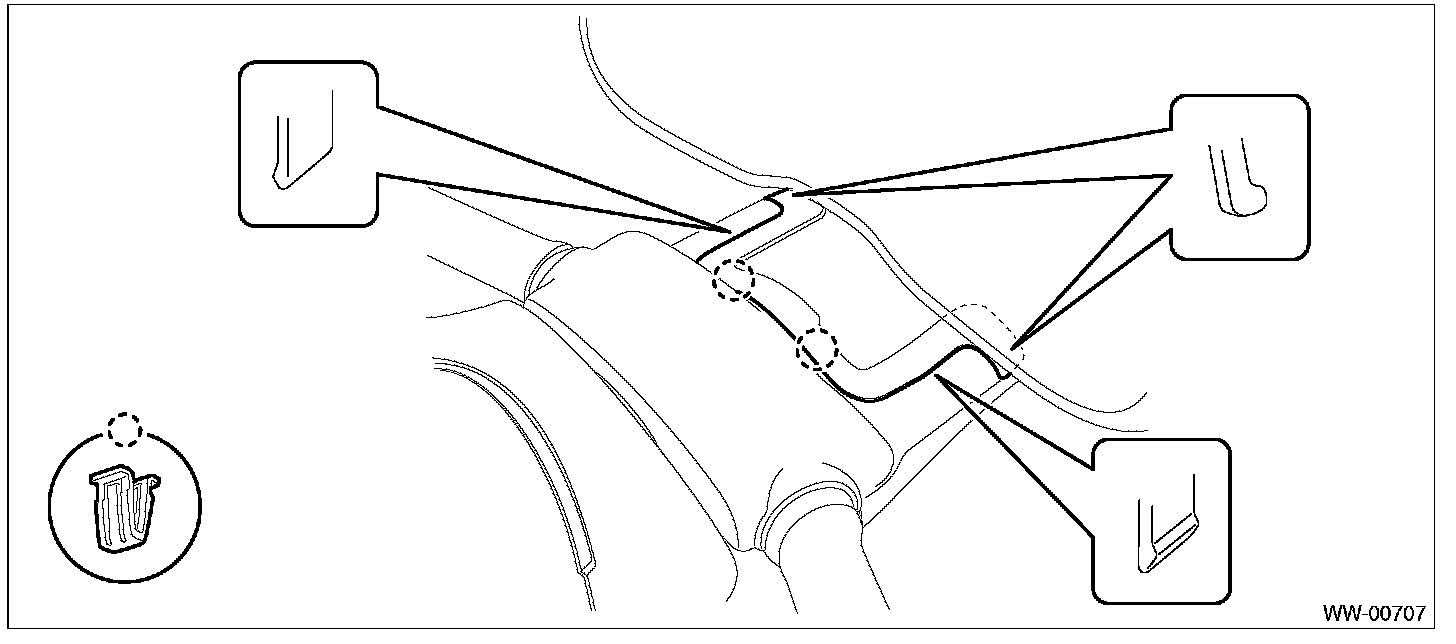

2. Release the claws and remove the steering column lower cover.
3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.






3. Remove the wiper switch assembly.
1. Disconnect the connector from wiper switch.

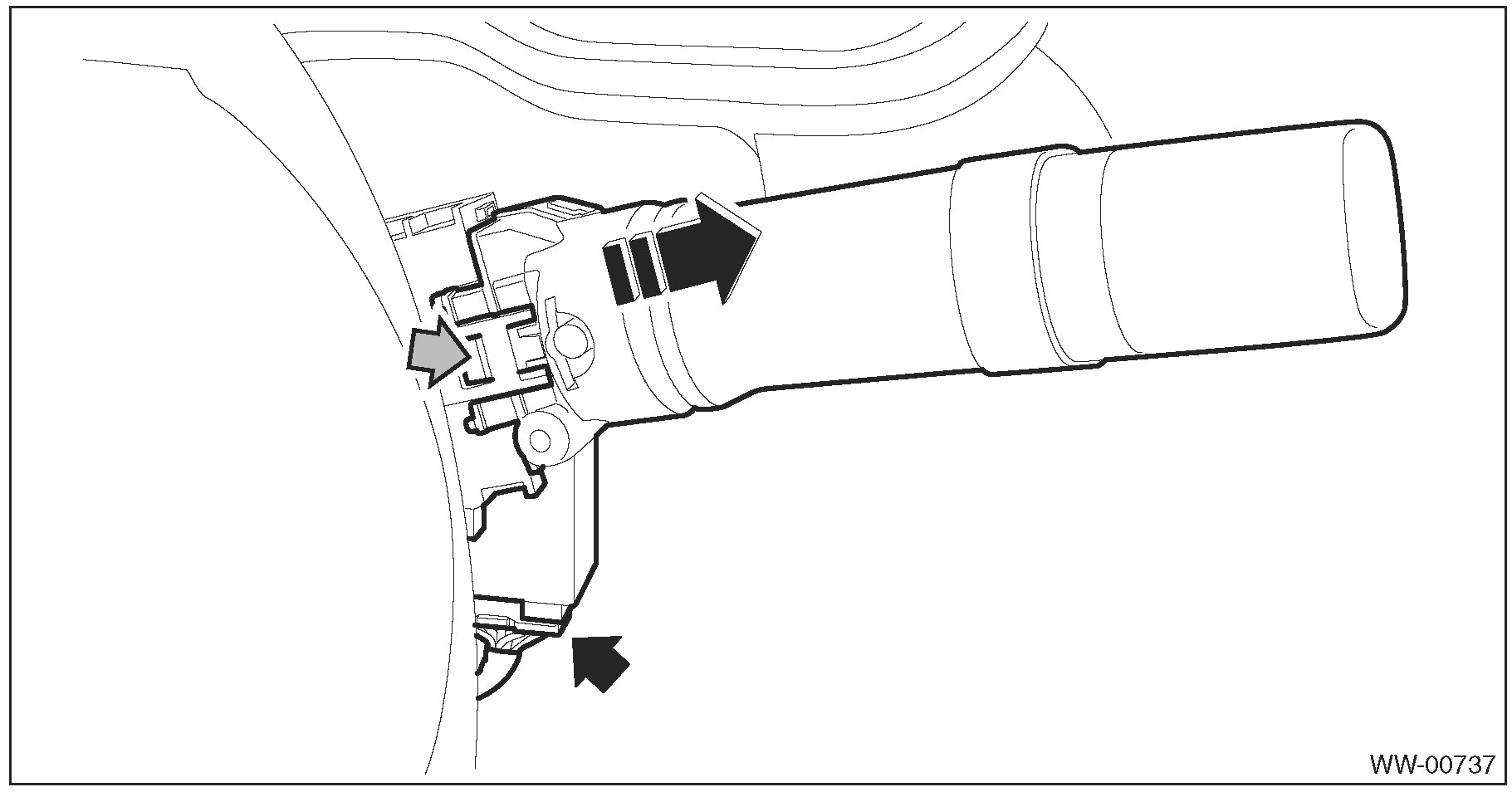

2. Release the claws, and pull out the wiper switch assembly.

CAUTION: Do not press the claws with excessive force. They may be damaged.






INSTALLATION
Install each part in the reverse order of removal.
