Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT SENSOR (AUTO A/C MODEL)

REMOVAL
1. Disconnect the ground cable from battery.

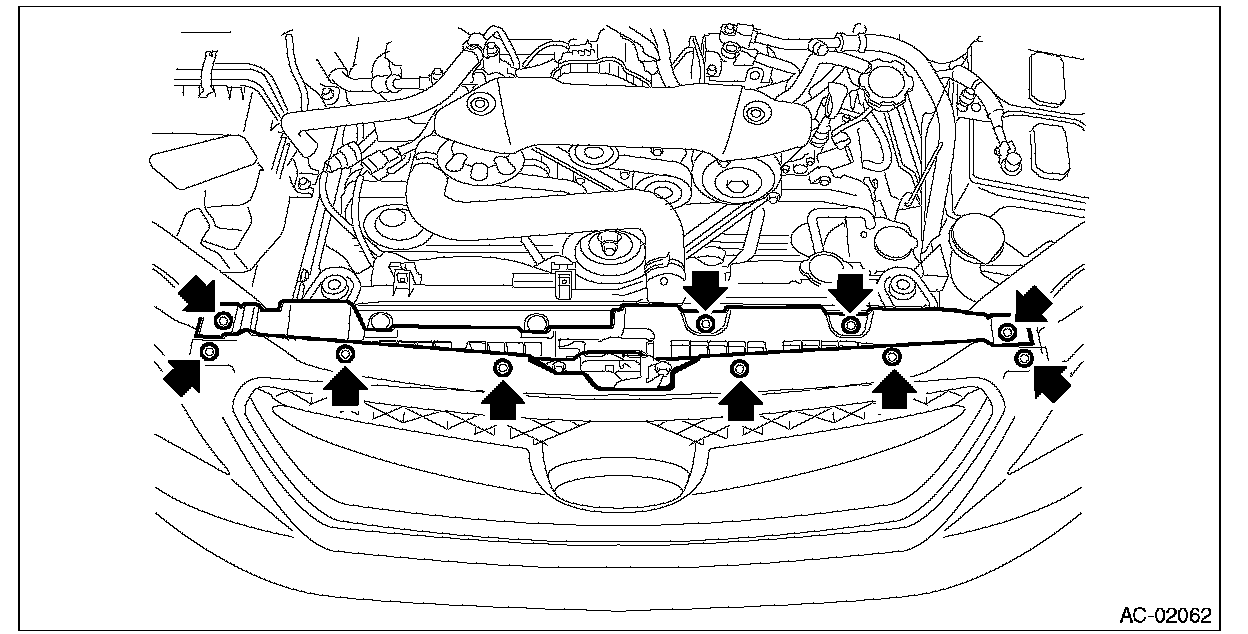

2. Remove the clips and remove the grille bracket. (Sedan model)

NOTE: To prevent damage to the grille bracket, make sure to remove all clips.

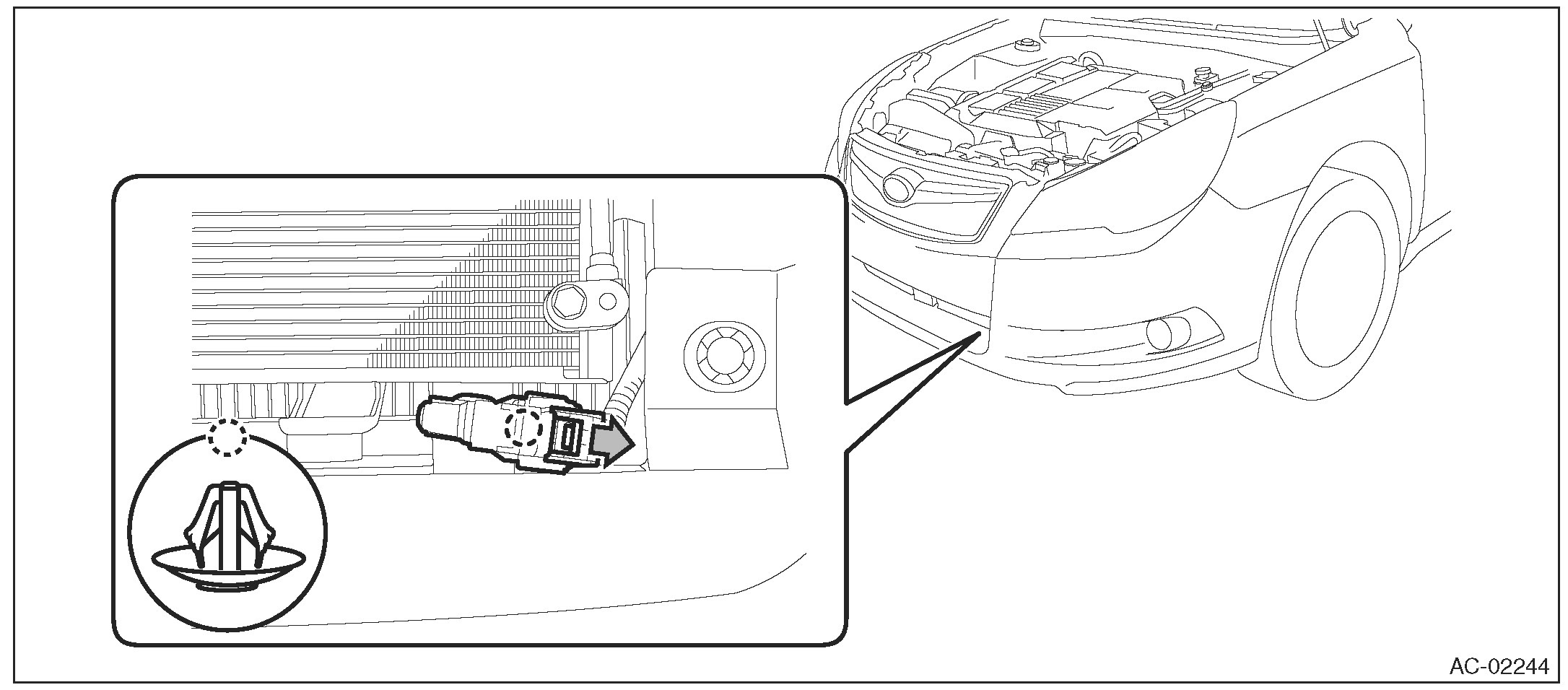

3. Remove the ambient sensor.
1. Disconnect the connector.
2. Remove the ambient sensor from the radiator lower panel.






INSTALLATION
Install each part in the reverse order of removal.
