General Description

General Description

ENGINE HARNESS

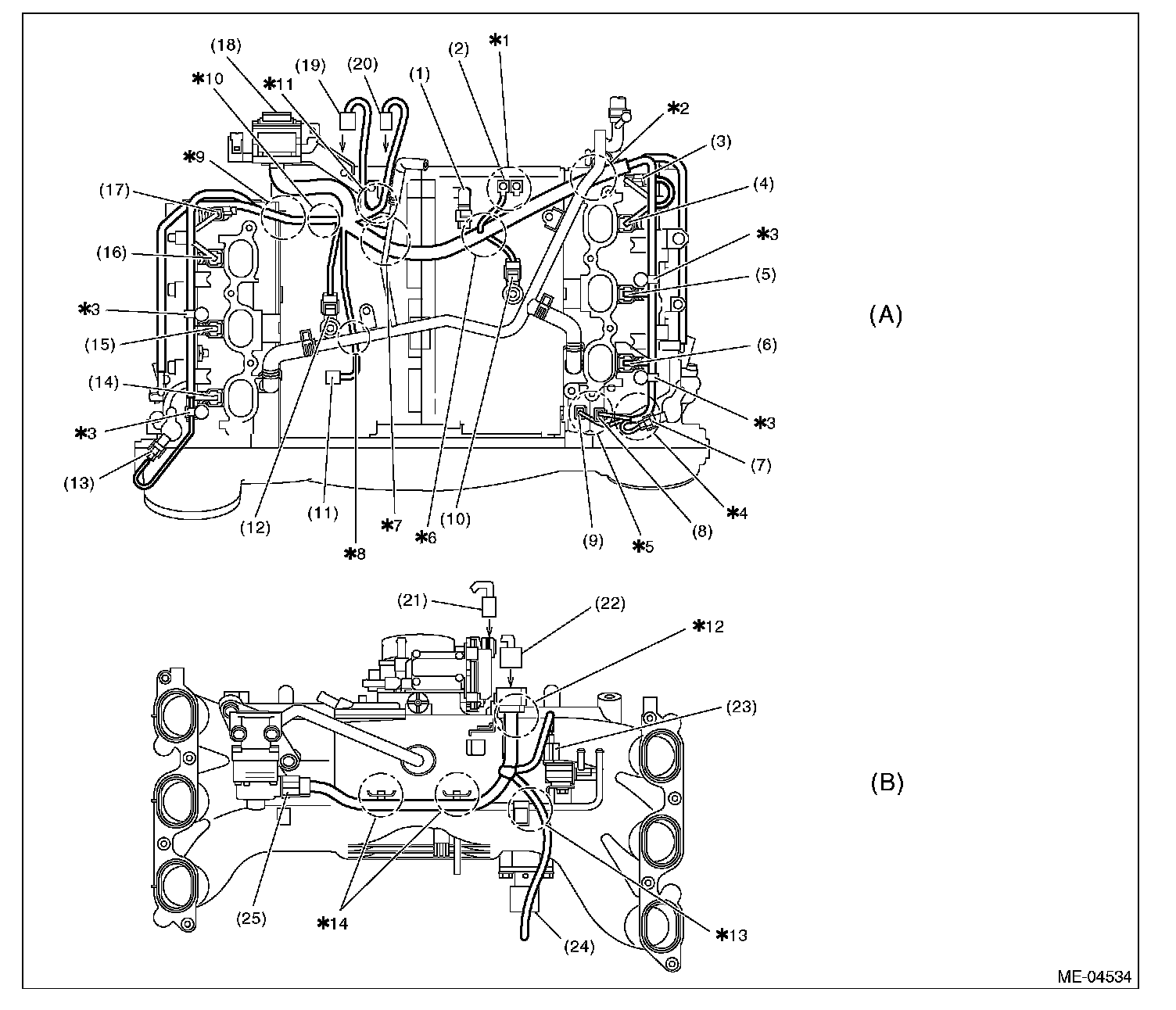

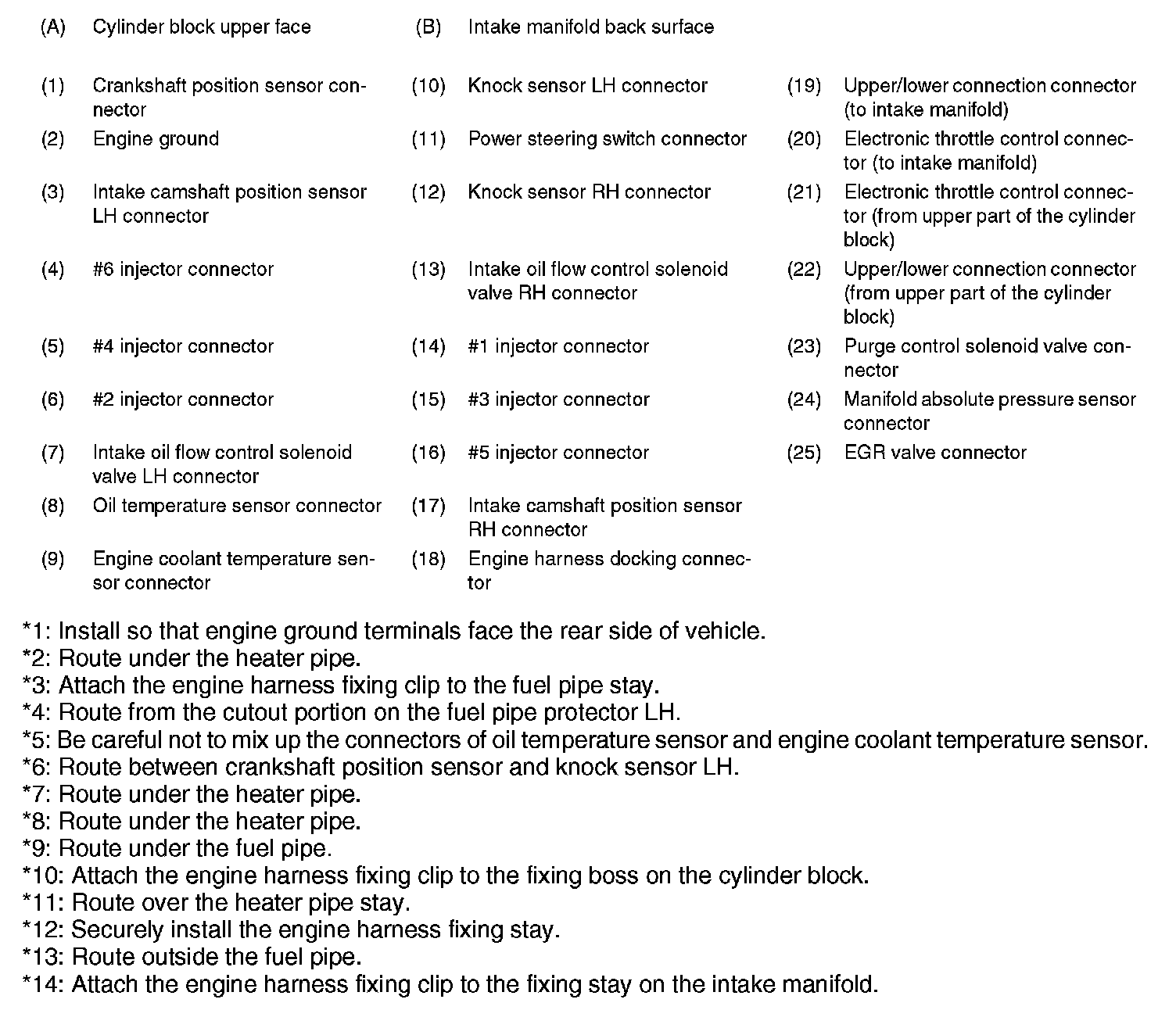

Engine harness assembly diagram 1

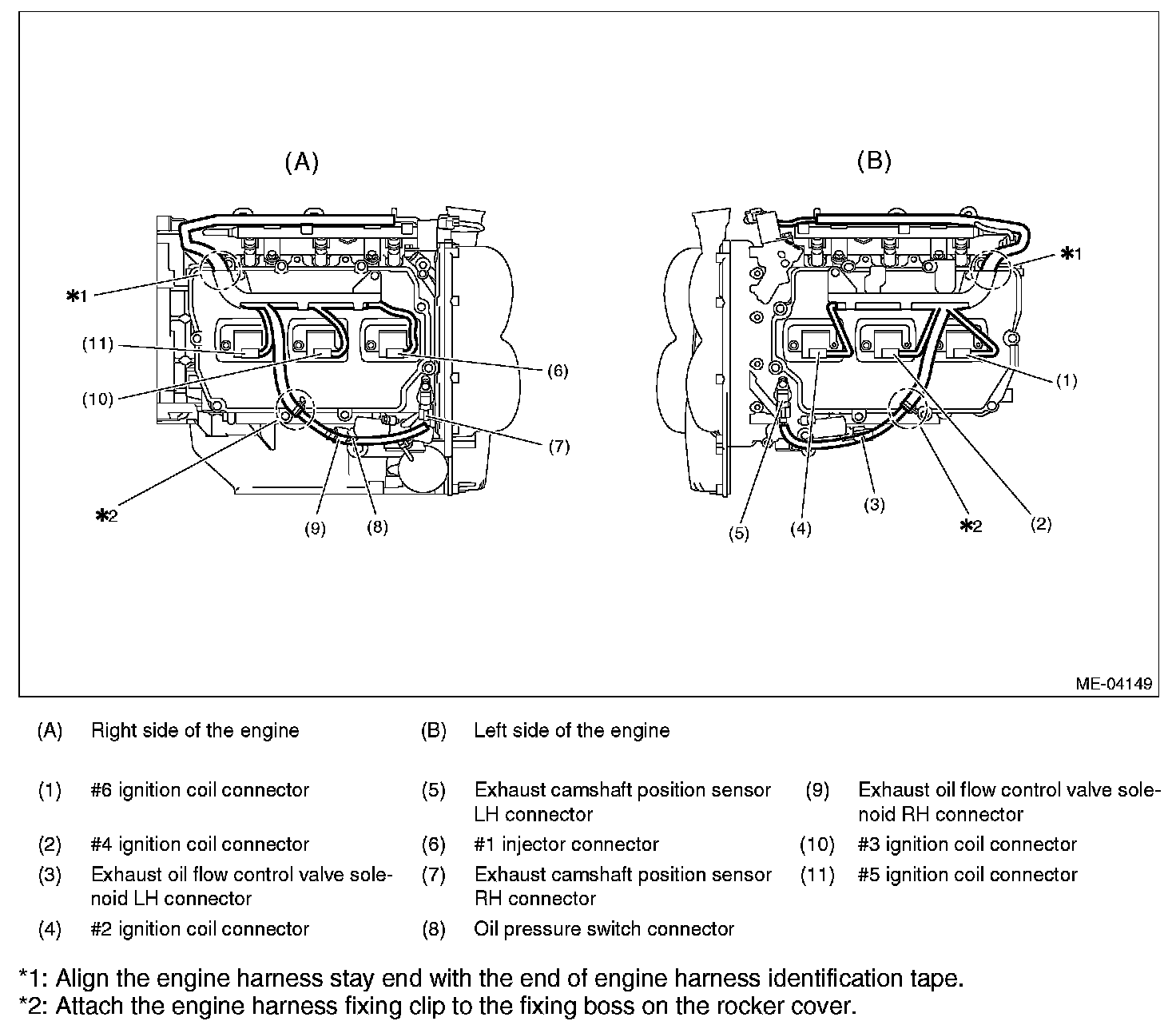

Engine harness assembly diagram 2
