Primary Speed Sensor Replacement

Primary Speed Sensor

REMOVAL

CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.

1) Remove the air intake boot assembly.
2) Remove the harness connector from primary speed sensor.

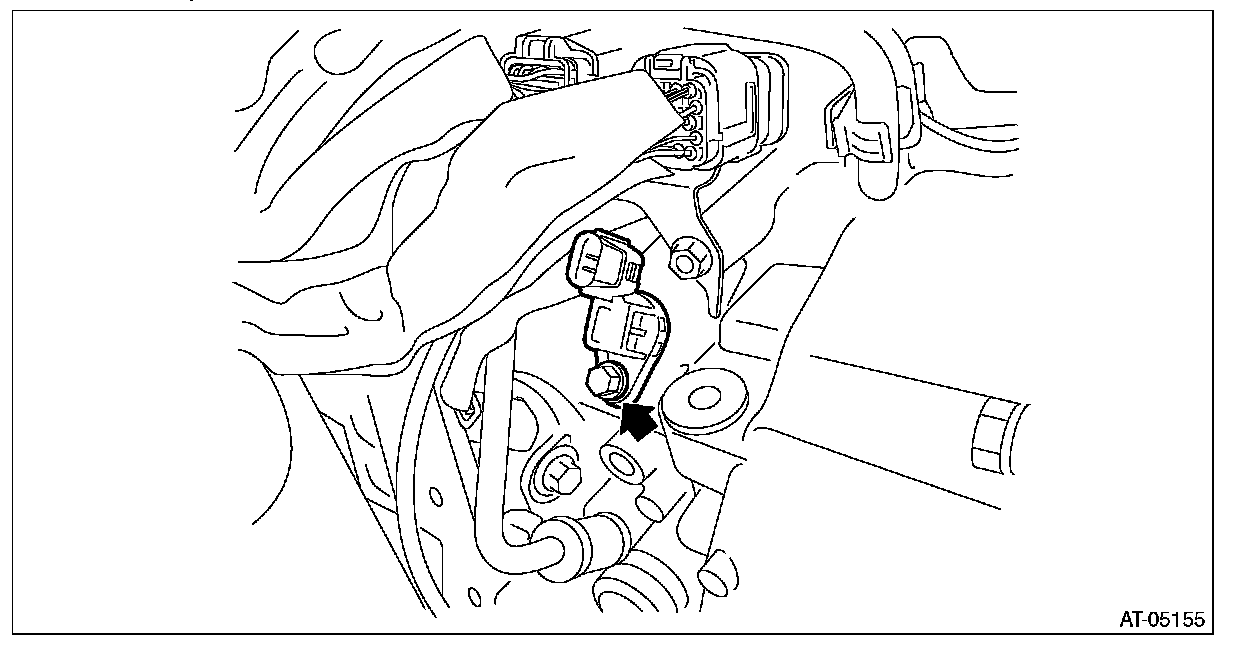

3) Remove the primary speed sensor.





INSTALLATION

CAUTION:
Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.

Install in the reverse order of removal.

NOTE:
^ Use new O-rings.
^ Apply CVTF to the O-ring.

Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)
