Engine Lubrication System - Mechanism & Function (H4DOTC)
>>
Engine Oil Flow
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Oil Flow

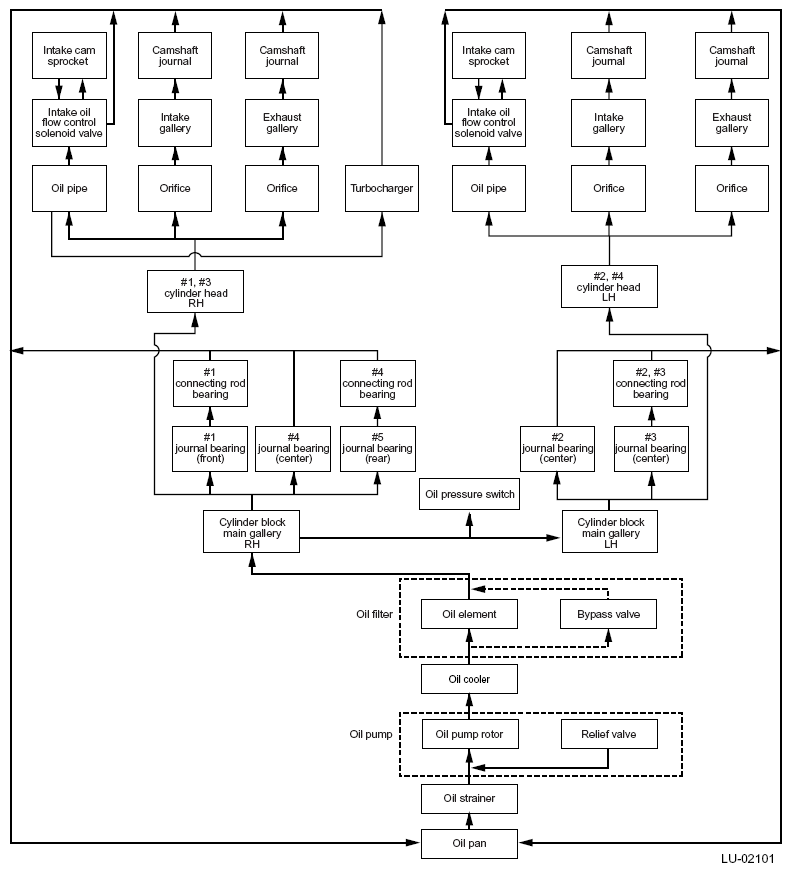

Fig 1: Engine Oil Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
