Electrical Specification
Fig 1: Identifying Engine Control Module I/O Signal Connector
Courtesy of SUBARU OF AMERICA, INC.

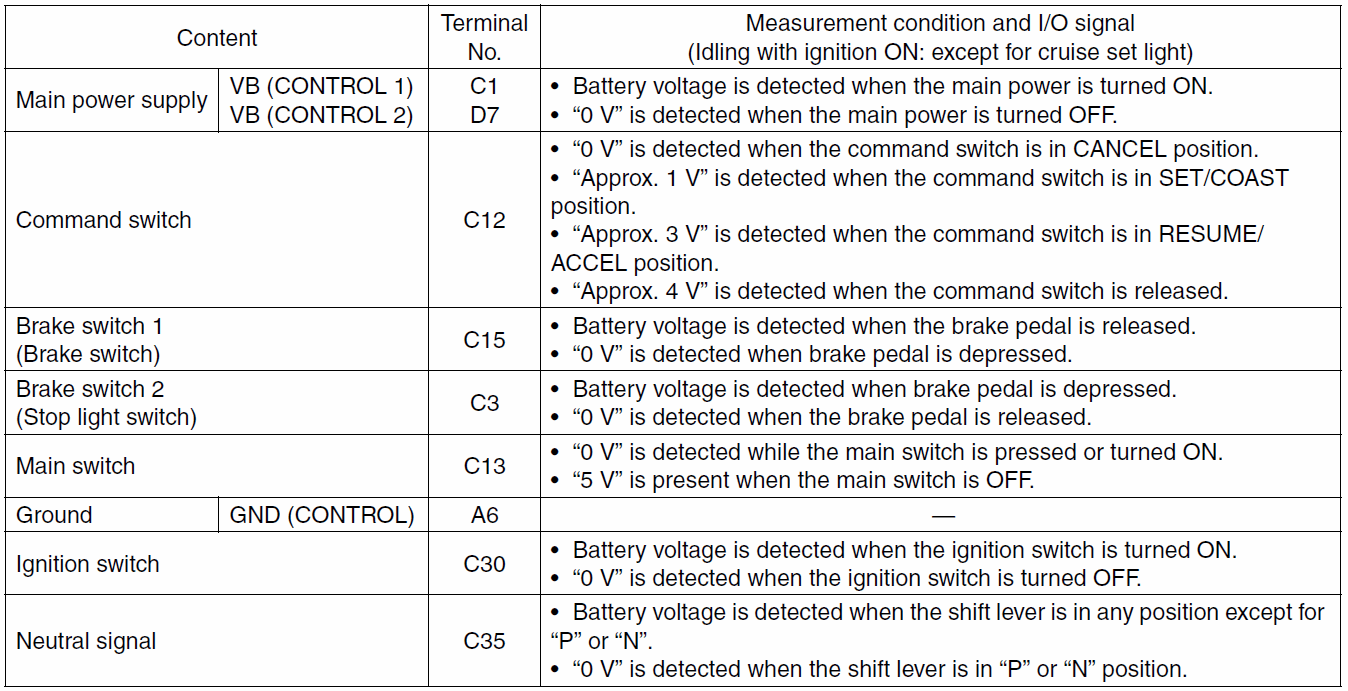

Fig 2: Engine Control Module I/O Signal Terminal Reference Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
