Alignment




Wheel Alignment Specifications

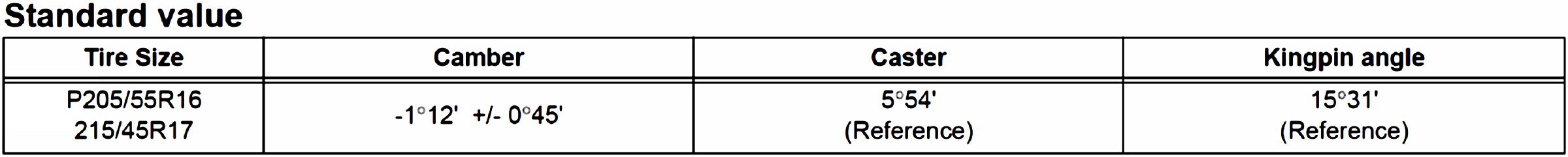

Front Camber, Caster And Kingpin Angle:

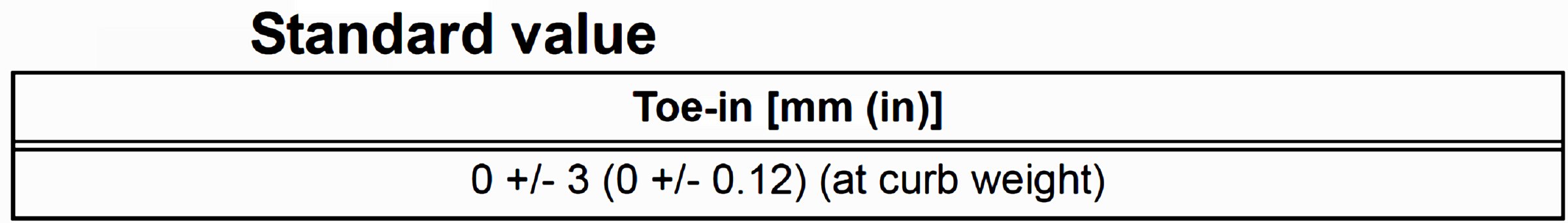

Front Toe-in:

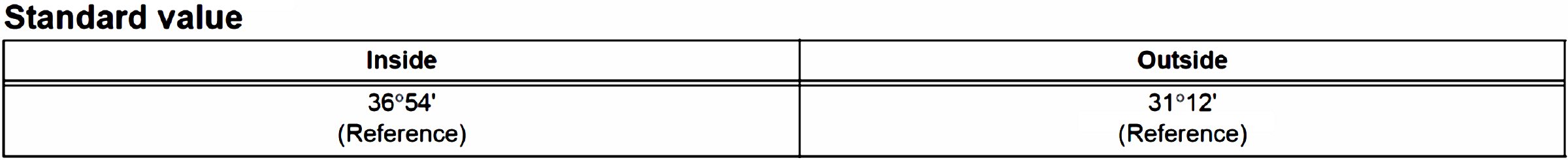

Front Wheel Turning Angle:

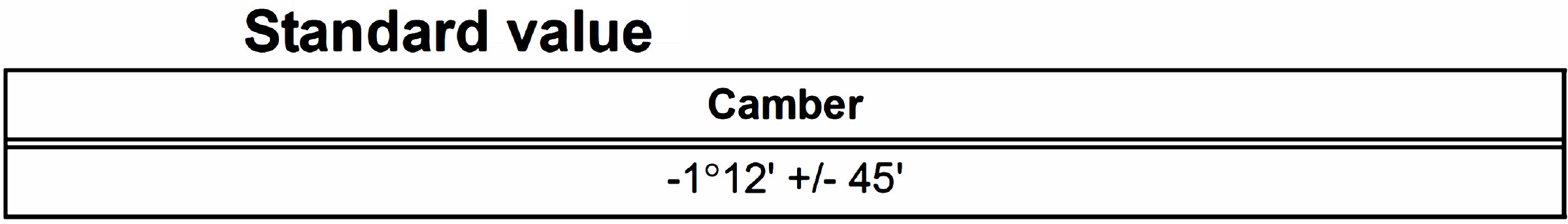

Rear Camber:
