Display of Current Data/System Operation Check Mode

Display Of Current Data/System Operation Check Mode

1. Inspection with SSM3

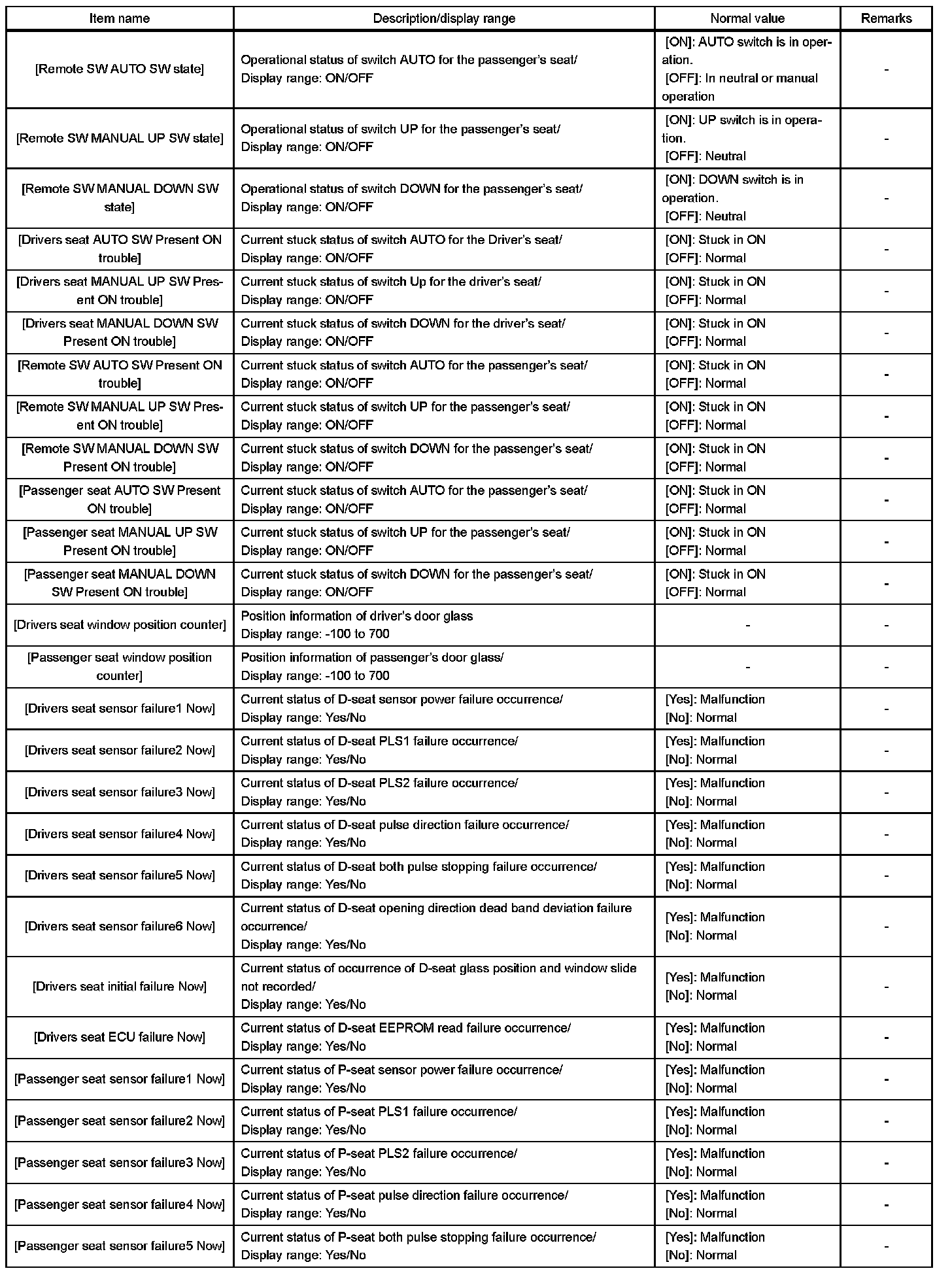

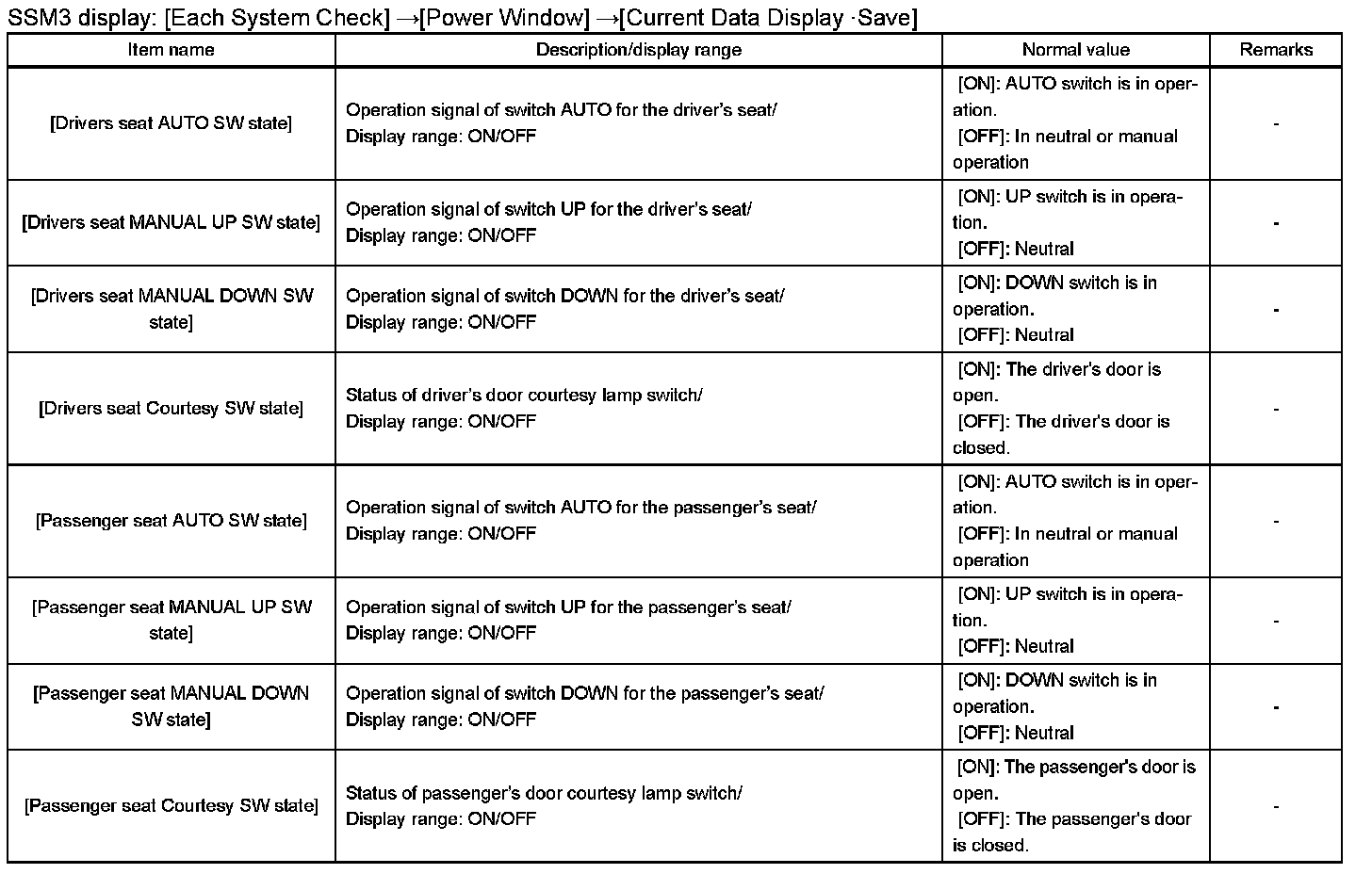

1. Display of current data
a. Use the SSM3 to display the current data and determine functionality, and narrow down the defective part.
















2. System operation check mode
a. Use the SSM3 and the system operation check mode to determine functionality and narrow down the defective part.
