Engine Oil Pressure Switch Assembly (FA20): Components

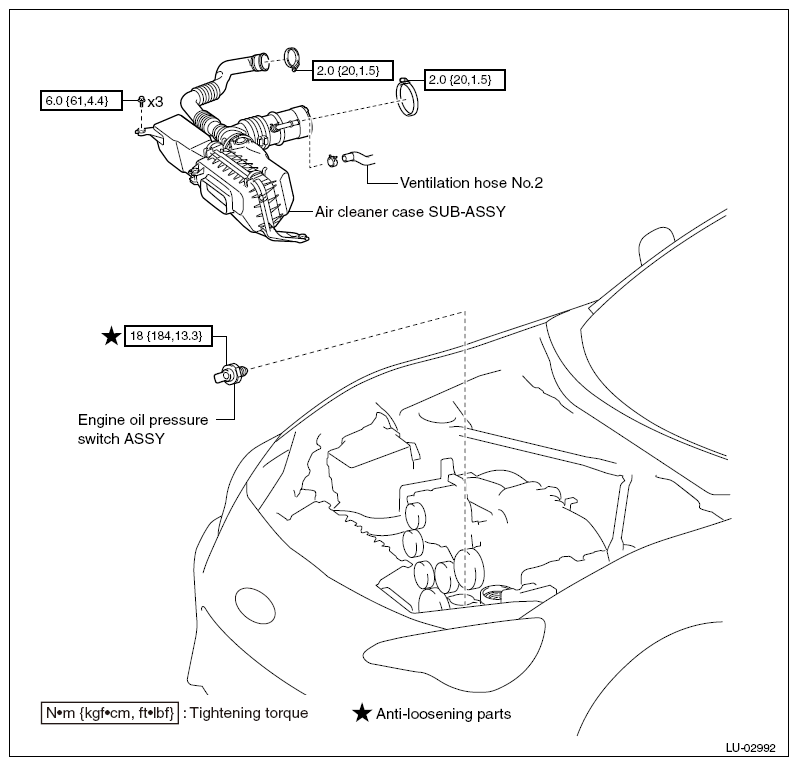

Fig 1: Identifying Engine Oil Pressure Switch Assembly Replacement Components With Torque Specifications
G08556655Courtesy of SUBARU OF AMERICA, INC.
