Exploded view

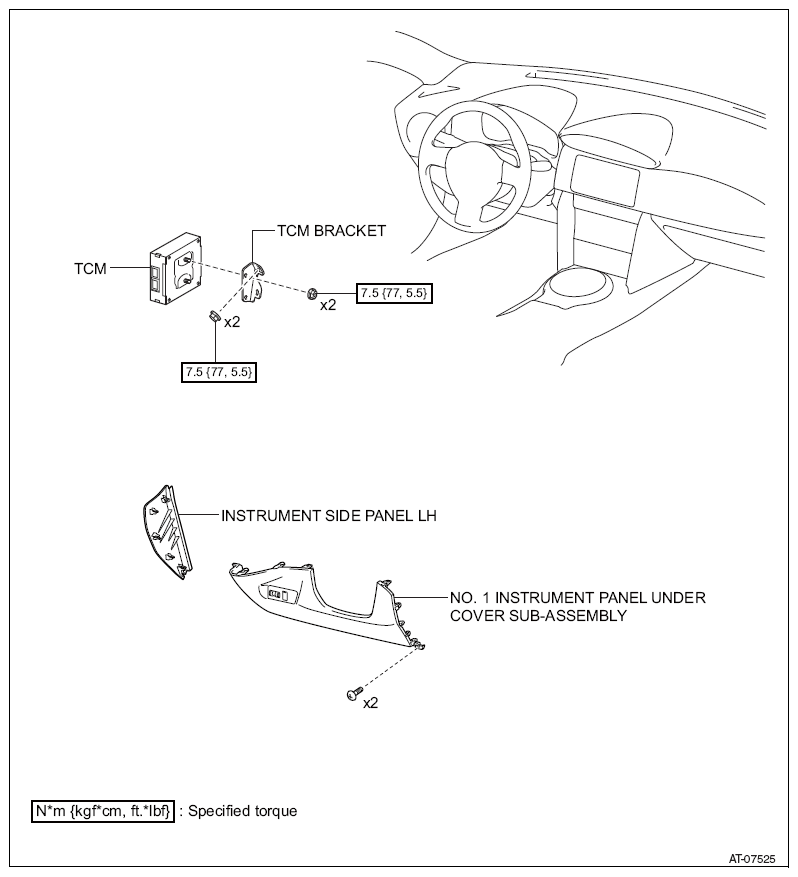

Fig 1: Exploded View Of Transmission Control Computer Assy With Torque Specifications
G08554838Courtesy of SUBARU OF AMERICA, INC.
