Cruise Control Main Switch: Inspection

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY

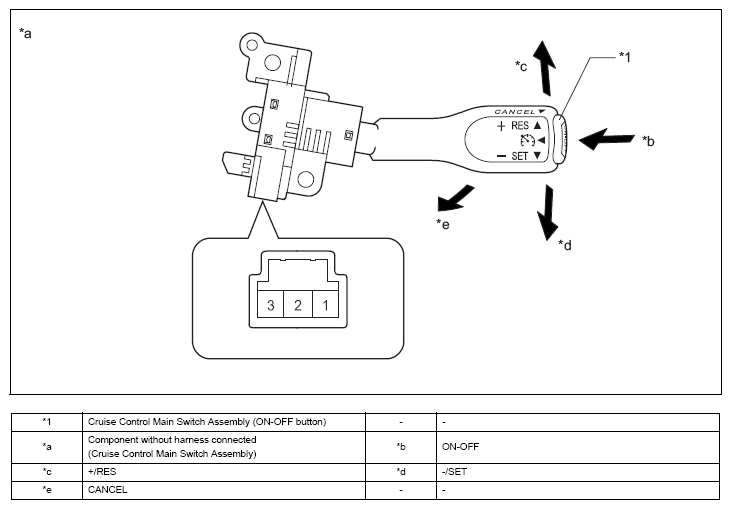

Measure the resistance according to the value(s) in the table below.

Courtesy of SUBARU OF AMERICA, INC.

TESTER CONNECTION AND SPECIFIED CONDITION - STANDARD RESISTANCE

Tester Connection	Switch Condition	Specified Condition
1 - 3	All switch released	1 M Ω or higher
	Cruise control Main switch Assembly (ON-OFF button) pushed	Below 1 Ω
	+/RES switch ON	235 to 245 Ω
	-/SET switch ON	617 to 643 Ω
	CANCEL switch ON	1509 to 1571 Ω
