Cruise Control Main Switch: Removal

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
    WARNING: Airbag and pretensioner system are equipped with backup power supply. Therefore, if any operation is started within 60 seconds after disconnecting the battery ground terminal, the airbag can deploy.
  2. Removal of the steering wheel cover LWR No. 2
    1. Release the claw.
    2. Release the claw of the guide, and remove the steering wheel cover LWR No. 2.
    G11259312Courtesy of SUBARU OF AMERICA, INC.

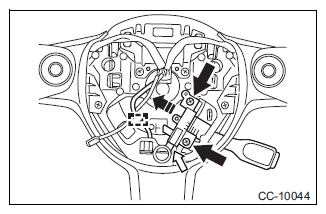

  3. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY
    1. Remove the harness from the holder, and disconnect the connector.
    2. Remove the 2 screws.
    3. Remove the cruise control main switch as shown in the figure.
    G11259313Courtesy of SUBARU OF AMERICA, INC.
