System Diagram

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

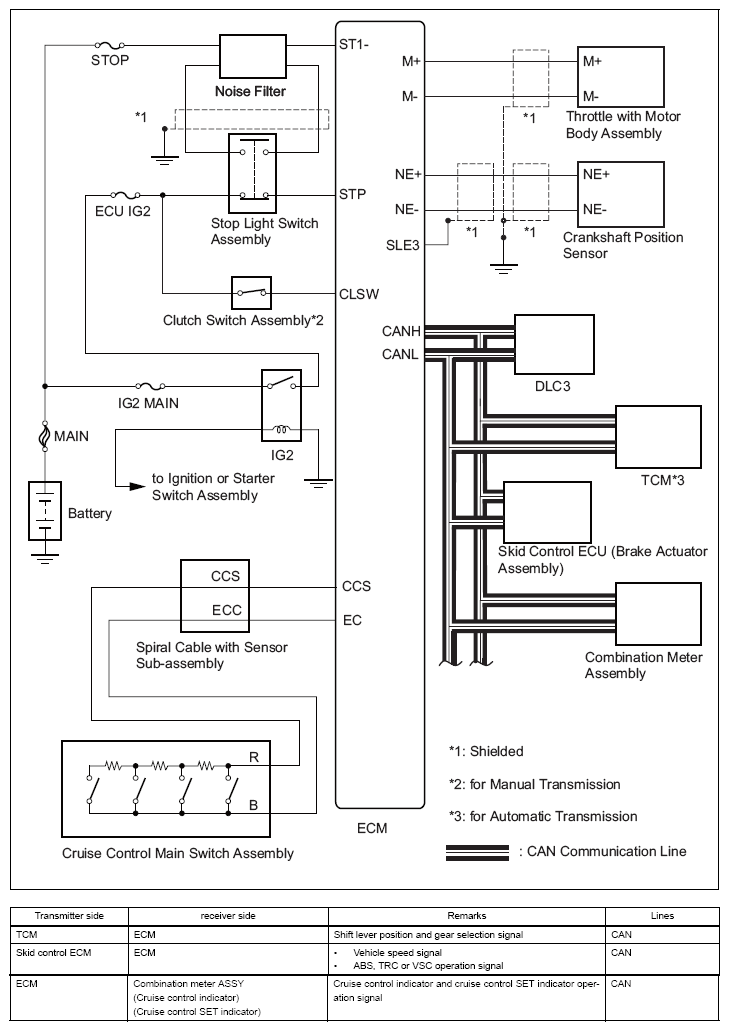

G12587349Courtesy of SUBARU OF AMERICA, INC.
COMMUNICATION SPECIFICATION

Transmitter side receiver side Remarks Lines
TCM ECM Shift lever position and gear selection signal CAN
Skid control ECM ECM
  • Vehicle speed signal
  • ABS, TRC or VSC operation signal
 CAN
ECM Combination meter ASSY
(Cruise control indicator)
(Cruise control SET indicator)		 Cruise control indicator and cruise control SET indicator operation signal CAN
