Components With Torque Specifications: Mirror

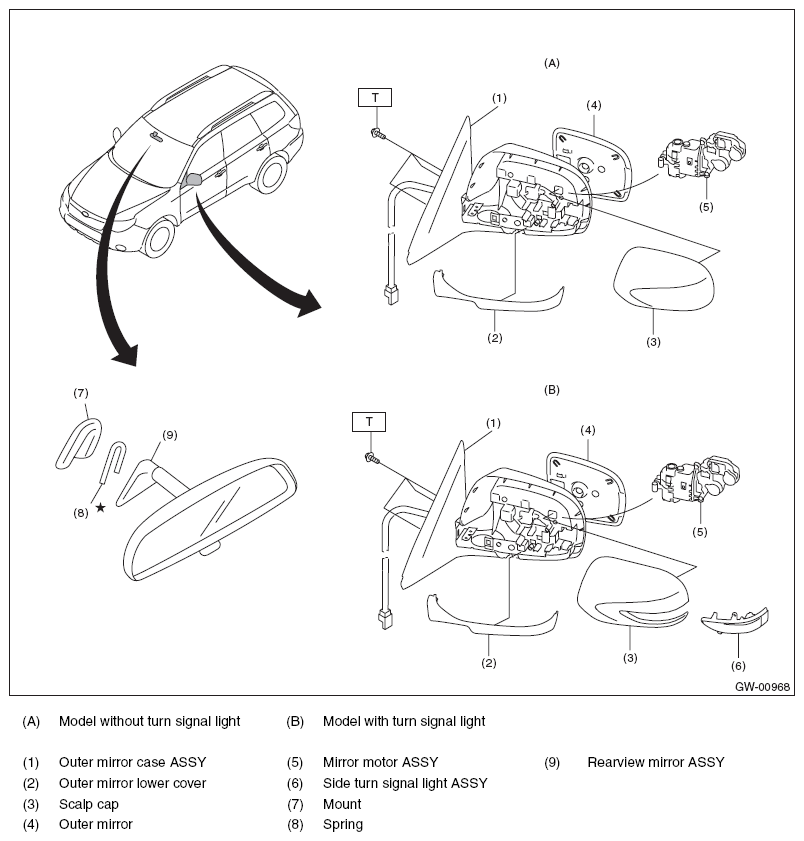

Fig 1: Mirror Replacement Components With Torque Specifications
G08566402Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:N.m (kgf-m, ft-lb)

T: 4.5 (0.46, 3.3)
