Identification Number And Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

• Positioning of the plate label for identification

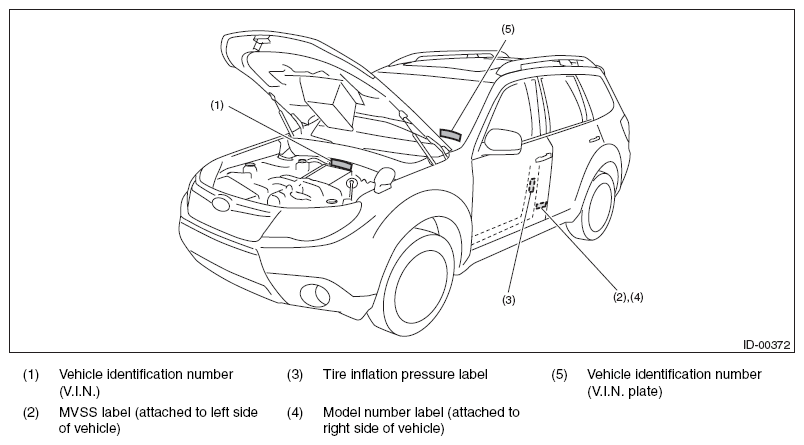

  Fig 1: Identifying Plate Label Positioning For Identification

  Courtesy of SUBARU OF AMERICA, INC.
• MVSS label
  Fig 2: Identifying MVSS Label

  Courtesy of SUBARU OF AMERICA, INC.
• Model number label
  Fig 3: Identifying Model Number Label

  Courtesy of SUBARU OF AMERICA, INC.
• Engine

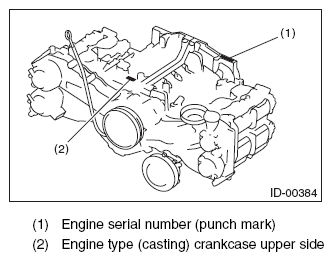

  Fig 4: Identifying Engine Identification Number And Label Locations

  Courtesy of SUBARU OF AMERICA, INC.
• Automatic transmission
  Fig 5: Identifying Automatic Transmission Identification Number And Serial Number Label Location

  Courtesy of SUBARU OF AMERICA, INC.
• Manual transmission
  Fig 6: Identifying Manual Transmission Identification Number And Serial Number Label Location

  Courtesy of SUBARU OF AMERICA, INC.
• Rear differential
  Fig 7: Identifying Rear Differential Identification Paint

  Courtesy of SUBARU OF AMERICA, INC.
