Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 2: Identifying Fuel Tank Band Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover and stopper.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

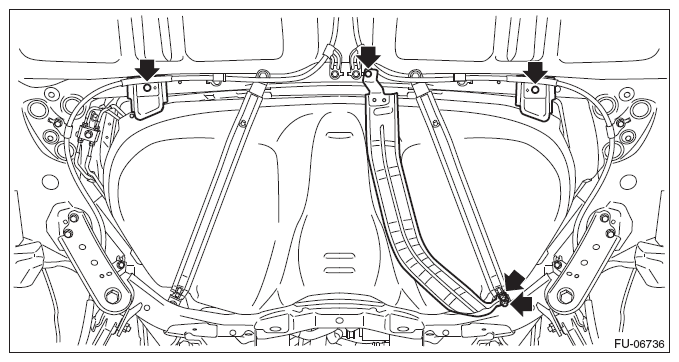

Fig 3: Locating Heat Shield Cover And Stopper Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel tank protector.
NOTE: Use a new self-locking nut.

Tightening torque:

T1: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

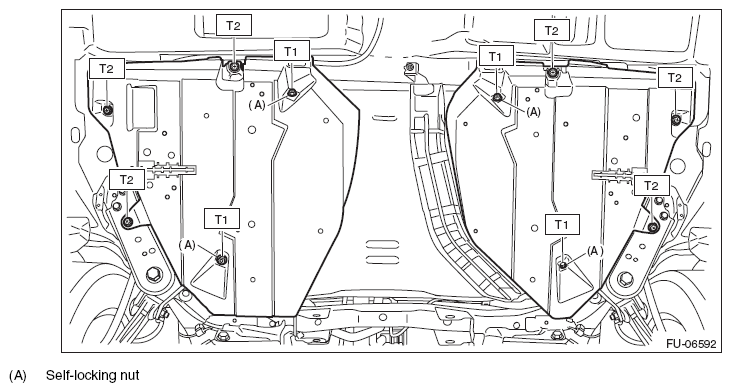

Fig 4: Identifying Fuel Tank Protector Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
Connect the vent tube to the canister.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
NOTE: Connect the quick connector as shown in the figure.

Fig 5: Connecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Locating Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel filler hose (A) and the evaporation hose (B) to the fuel filler pipe assembly.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 7: Identifying Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Hose, Spool, Pipe And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the rear differential. < Refer to INSTALLATION , Rear Differential (T-type). > < Refer to INSTALLATION , Rear Differential (VA-type). >
Install the rear exhaust pipe and muffler. < Refer to INSTALLATION , Rear Exhaust Pipe. > < Refer to INSTALLATION , Muffler. >
Connect the quick connector of the fuel delivery tube.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.
NOTE: Connect the quick connector as shown in the figure.

Fig 9: Connecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Locating Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel sub level sensor.

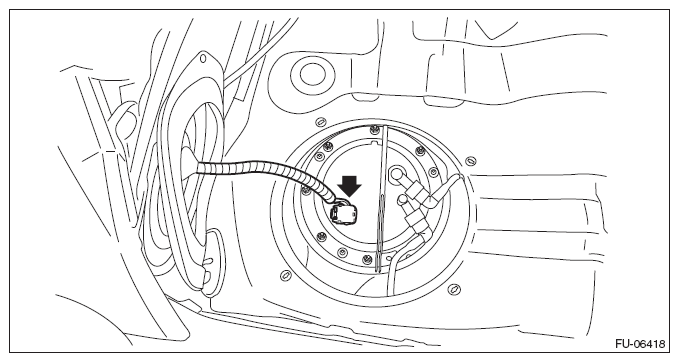

Fig 11: Locating Fuel Sub Level Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Fig 12: Locating Fuel Sub Level Sensor Service Hole Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the fuel pump.

Fig 13: Locating Fuel Pump Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel pump.

Fig 14: Locating Fuel Pump Service Hole Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. < Refer to INSTALLATION , Rear Seat. >
Connect the battery ground terminal.
