Electronic Throttle Control Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G08538842Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the electronic throttle control relay from the relay block on the back side of the glove box.

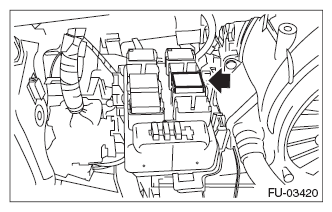

    Fig 2: Locating Electronic Throttle Control Relay
    G08538843Courtesy of SUBARU OF AMERICA, INC.
