Torque Converter Assembly And Converter Case

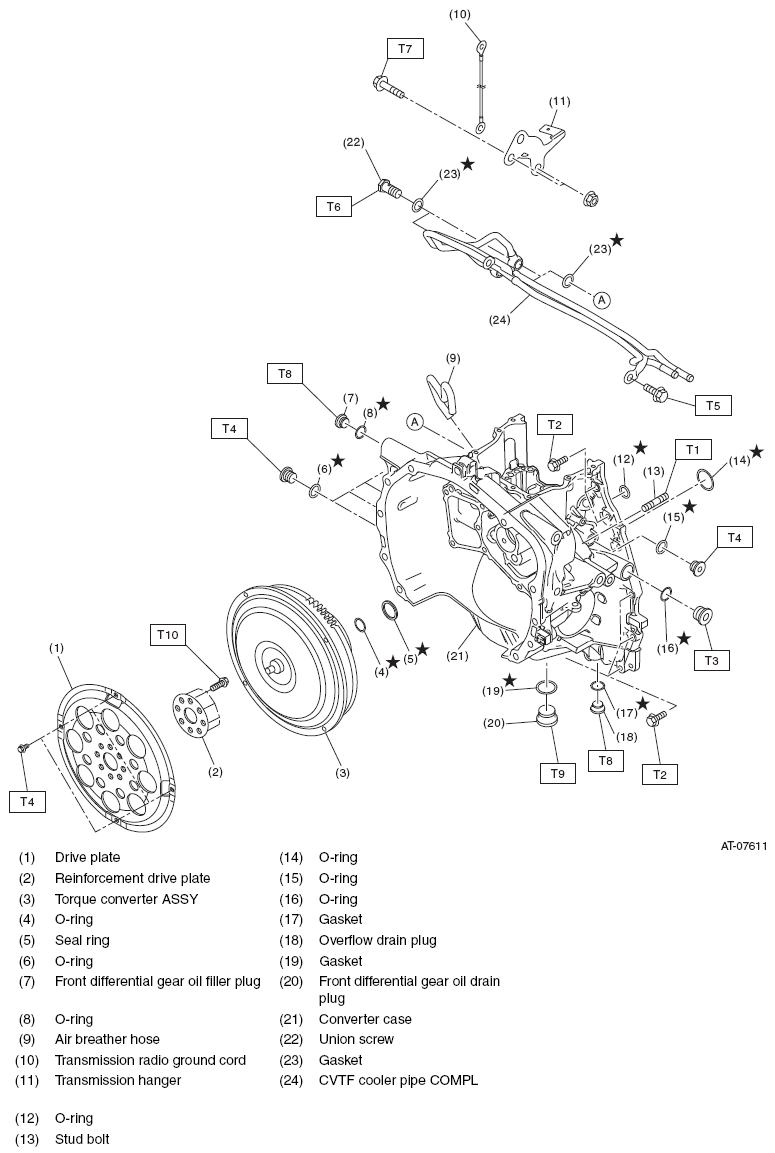

Fig 1: Torque Converter Assembly And Converter Case Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 22 (2.2, 16.2)

T3: 22.5 (2.3, 16.6)

T4: 25 (2.5, 18.4)

T5: 35 (3.6, 25.8)

T6: 40 (4.1, 29.5)

T7: 41 (4.2, 30.2)

T8: 50 (5.1, 36.9)

T9: 70 (7.1, 51.6)

T10: Refer to  INSTALLATION  .
