Vehicle Height Sensor Unit Terminal Layout
WARNING:
This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

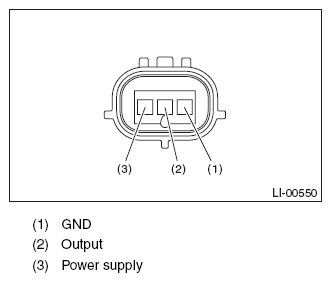

Fig 1: Vehicle Height Sensor Unit Terminal Layout
Courtesy of SUBARU OF AMERICA, INC.
