Combination Base Switch Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's airbag module. < Refer to REMOVAL , Driver's Airbag Module. >
Remove the steering wheel. < Refer to REMOVAL , Steering Wheel. >
Remove the screws and remove the steering column cover lower.

Fig 1: Locating Steering Column Cover Lower Screw
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness cover lock.
Remove the screws and detach the knee protector.

Fig 2: Locating Knee Protector Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and remove the steering column upper cover.

Fig 3: Removing Steering Column Cover Upper Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws, and then remove the roll connector.

Fig 4: Identifying Roll Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws, disconnect the harness connector and remove the combination base switch assembly.

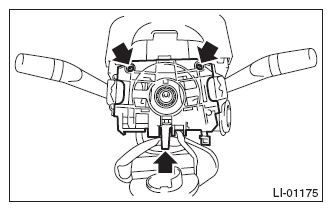

Fig 5: Locating Combination Base Switch Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the combination switch from the combination base switch assembly.
- Combination switch (light): < Refer to REMOVAL , Combination Switch (Light). >
- Combination switch (wiper): < Refer to REMOVAL , Combination Switch (Wiper). >
