Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

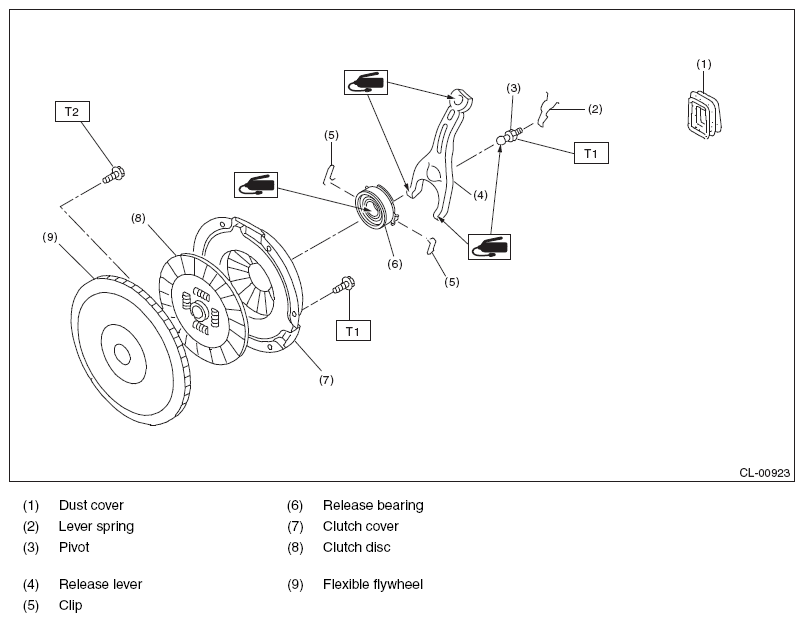

Fig 1: Clutch Assembly Replacement Components With Torque Specifications
G08582173Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: Refer to  INSTALLATION  .
