Clutch Pedal Assembly

WARNING: This page is about a different variant/trim than selected.

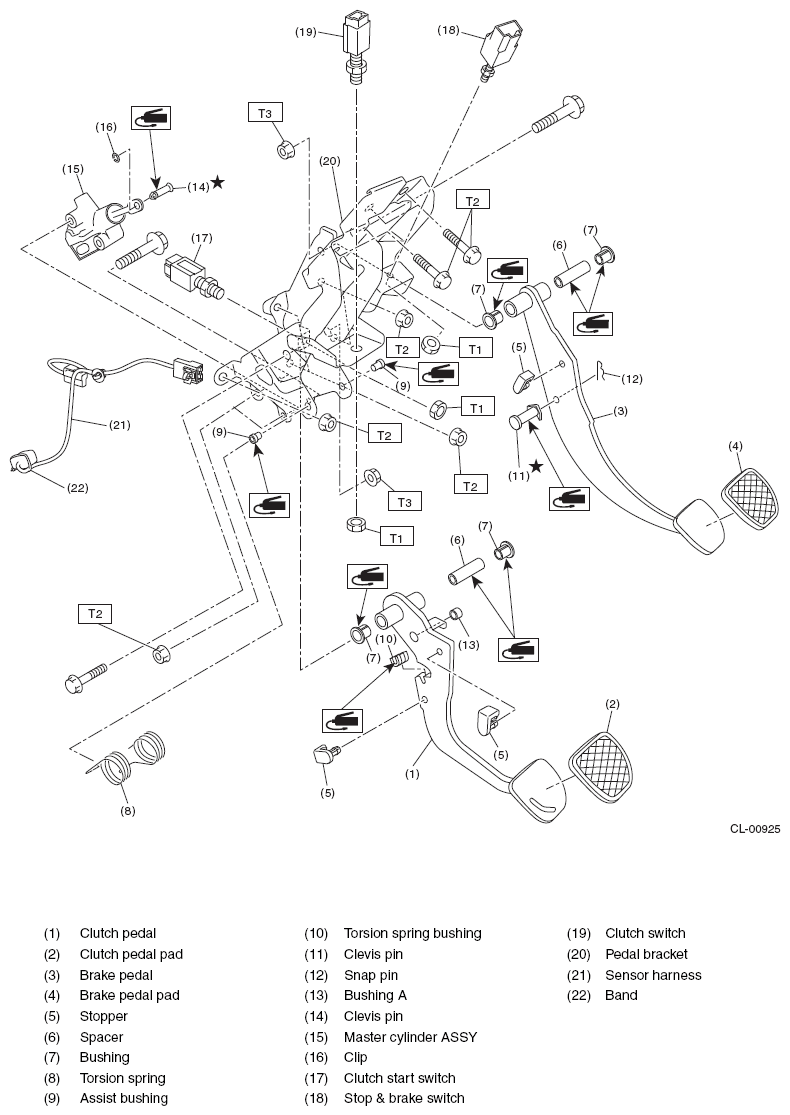

Fig 1: Clutch Pedal Assembly Related Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)

T3: 30 (3.1, 22.1)
