Keyless Access CM: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL .
  3. Remove the relay & fuse box.
    1. Disconnect connectors.
    2. Remove the bolts and remove the relay & fuse box.

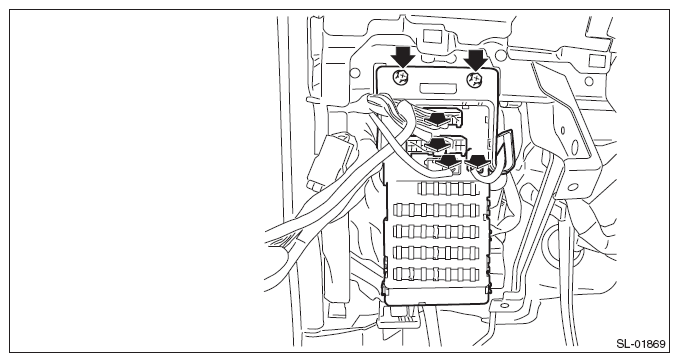

      Fig 1: Disconnecting Relay & Fuse Box Connectors
      G08585033Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the holder.
    1. Disconnect the connector.
    2. Remove the bolt and remove the connector holder.

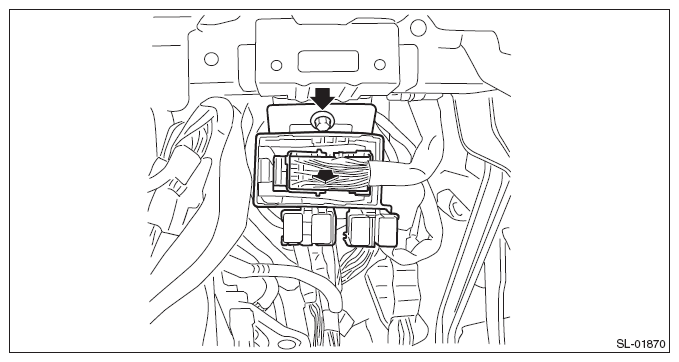

      Fig 2: Disconnecting Connector
      G08585034Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the keyless access CM.
    1. Disconnect connectors.
    2. Remove the nut and remove the keyless access CM.

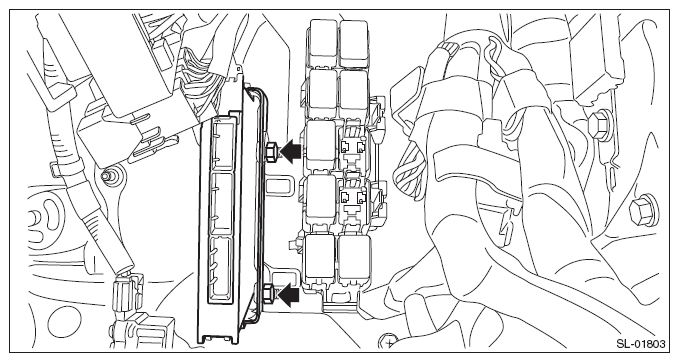

      Fig 3: Locating Keyless Access CM Nut
      G08585035Courtesy of SUBARU OF AMERICA, INC.
