Keyless Buzzer: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the front bumper face assembly. Refer to REMOVAL .
  3. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.

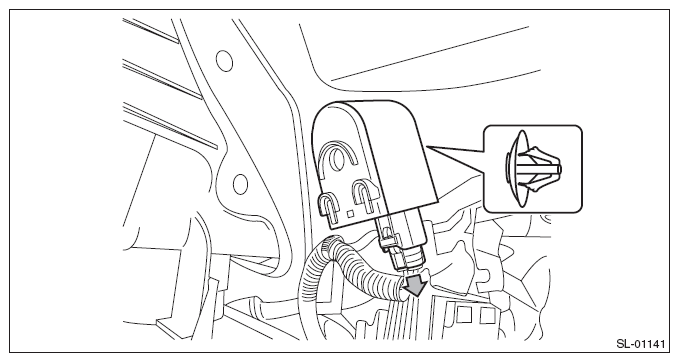

      Fig 1: Disconnecting Keyless Buzzer Connector
      G08584987Courtesy of SUBARU OF AMERICA, INC.
