Keyless Transmitter Registration

NOTE:
  • A maximum of four keyless transmitters can be registered for each individual vehicle.
  • When replacing or adding the keyless transmitter, new registration of transmitter is necessary.
  1. Prepare the Subaru Select Monitor kit. Refer to SPECIAL TOOL .
    Fig 1: Identifying Subaru Select Monitor Kit
    G05658482Courtesy of SUBARU OF AMERICA, INC.
  2. Prepare PC with Subaru Select Monitor installed.
  3. Connect the USB cable to SDI (Subaru Diagnosis Interface) and USB port on the personal computer (dedicated port for the Subaru Select Monitor).
    NOTE: The dedicated port for the Subaru Select Monitor means the USB port which was used to install the Subaru Select Monitor.
  4. Connect the diagnosis cable to SDI.
  5. Connect SDI to data link connector located in the lower portion of the instrument panel (on the driver's side).
    CAUTION: Do not connect scan tools other than the Subaru Select Monitor.

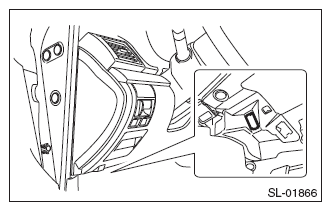

    Fig 2: Identifying Data Link Connector
    G08584994Courtesy of SUBARU OF AMERICA, INC.
  6. Start the PC.
  7. Turn the ignition switch to ON (engine OFF) and run the "PC application for Subaru Select Monitor".
  8. On the «Main Menu» of the Subaru Select Monitor, select the {Each System Check} → {Integ. unit mode} → {Keyless ID registration}.
  9. Input the 8-digit ID number attached to the tag plate of the transmitter or inside the transmitter, from left to right. Press the [OK] key.
  10. The ID number you have entered will be shown. Make sure that the ID number shown is the same as that of plastic bag or inside of transmitter.
  11. Press the [OK] key if the ID number is correct. Press the [EXIT] key if incorrect, to return to the step  3) and enter the ID number again.
  12. «ID is being registered...» is displayed and registration starts.
  13. «ID registration completed» will be displayed when the registration process is done.
  14. To exit, select «Quit: NO» to return to {Keyless ID registration}. If there are additional keyless transmitters to be registered, select «The following are registered: OK» to return to the step  4).
    NOTE:
    • If the registration fails, «ID cannot register Please try again» will be shown. Select the [OK] key to return to the {Keyless ID registration}. Retry starting from the step  3).
    • «Quit: NO» is shown on the Subaru Select Monitor when fourth keyless transmitter has been registered. Select the [NO] key to return to {Keyless ID registration}.
