Communication For Initializing Impossible: Wiring Diagram

Power seat system with memory. See appropriate SYSTEM WIRING DIAGRAM article.

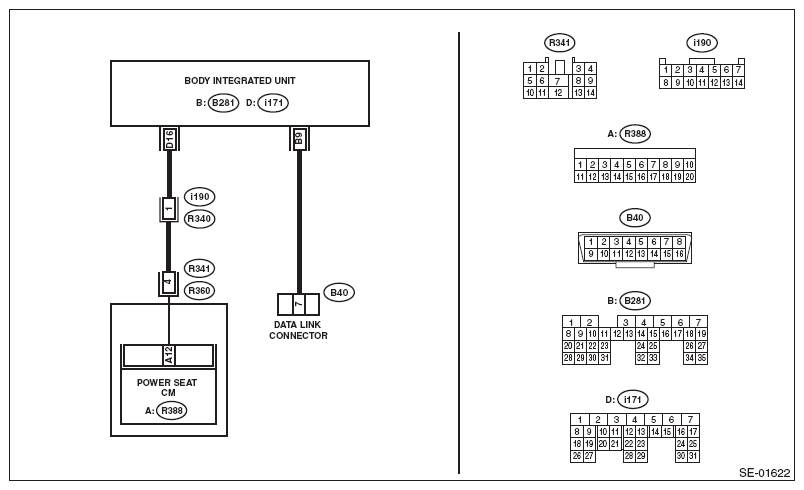

Fig 1: Power Seat System - Wiring Diagram:
G08584911Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK OTHER COMMUNICATION.
Perform communication with the system other than the power seat control module using the Subaru Select Monitor.		 Is the communication to other control module possible? Go to step 2  . Perform the "Communication for Initializing Impossible" of LAN system. Refer to PROCEDURE .
2 CHECK LAN SYSTEM.
Read the DTC of the LAN system using the Subaru Select Monitor.		 Is a DTC related to LIN communication detected? Perform the diagnosis according to DTC. Go to step 3  .
3 CHECK FOR POOR CONTACT.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector of power seat control module.
  3. Disconnect the connector of body integrated unit.
  4. Connect the disconnected connectors.
  5. Perform communication with the power seat control module using the Subaru Select Monitor.
 Is communication possible? It is possible that temporary poor communication occurs. Replace the power seat control module. Refer to POWER SEAT CONTROL MODULE (SEAT WITH MEMORY FUNCTION) .
