Front Seat

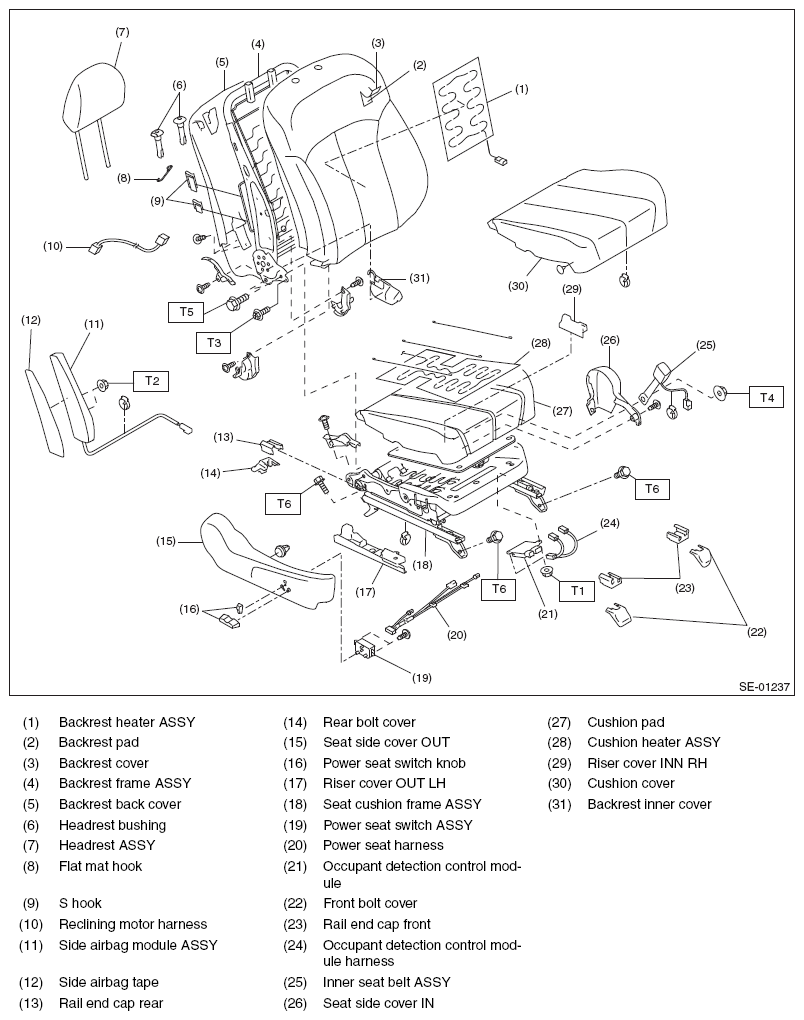

Fig 1: Front Seat Replacement Components With Torque Specifications (Manual Seat LH)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 18 (1.84, 13.3)

T3: 38 (3.87, 28.0)

T4: 52 (5.30, 38.4)

T5: 53 (5.40, 39.1)

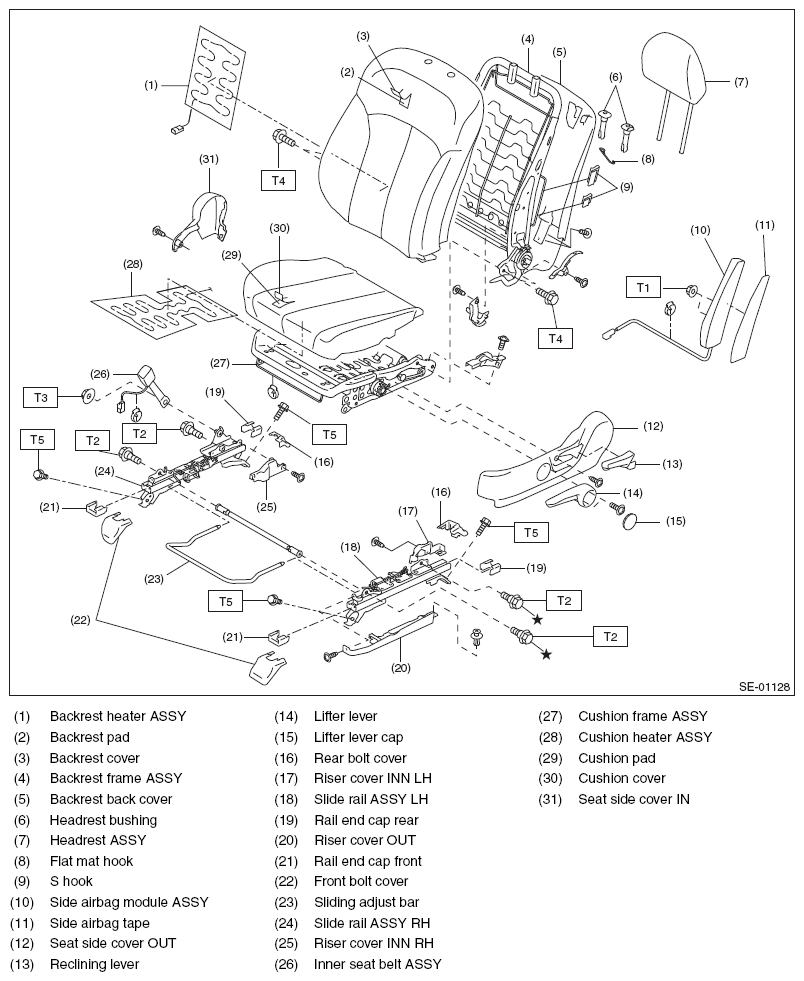

Fig 2: Front Seat Replacement Components With Torque Specifications (Power Seat LH)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 18 (1.84, 13.3)

T3: 38 (3.87, 28.0)

T4: 52 (5.30, 38.4)

T5: 53 (5.40, 39.1)

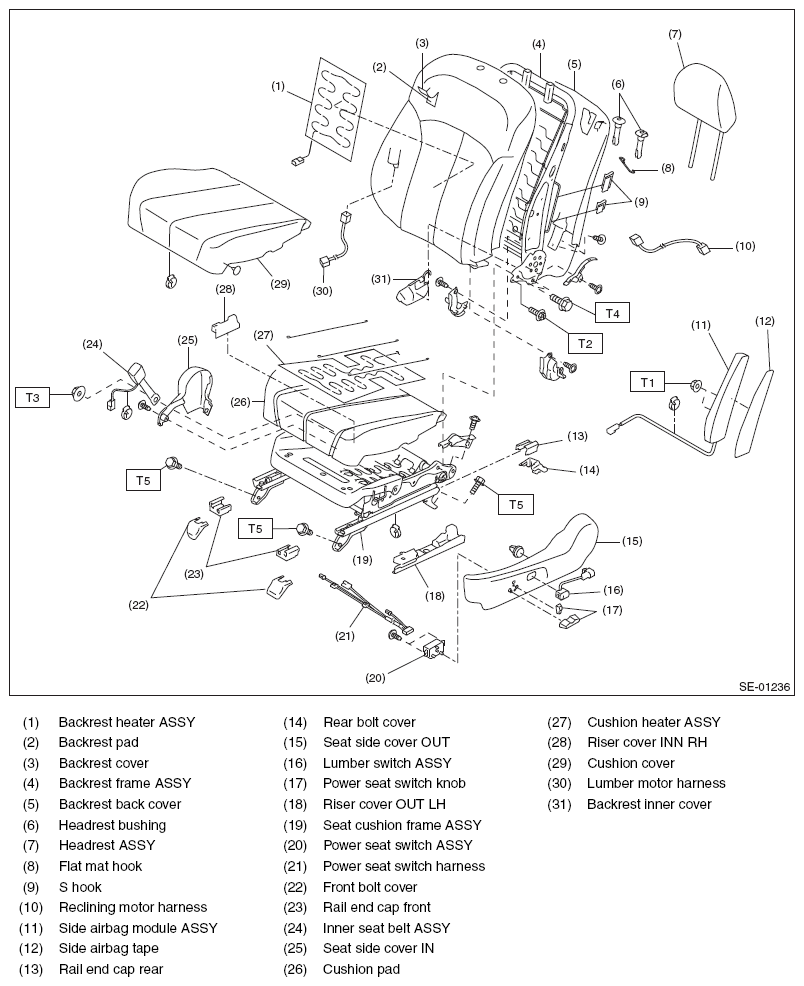

Fig 3: Front Seat Replacement Components With Torque Specifications (Manual Seat Rh)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.9 (0.6, 4.4)

T2: 6 (0.61, 4.4)

T3: 18 (1.84, 13.3)

T4: 38 (3.87, 28.0)

T5: 52 (5.30, 38.4)

T6: 53 (5.40, 39.1)

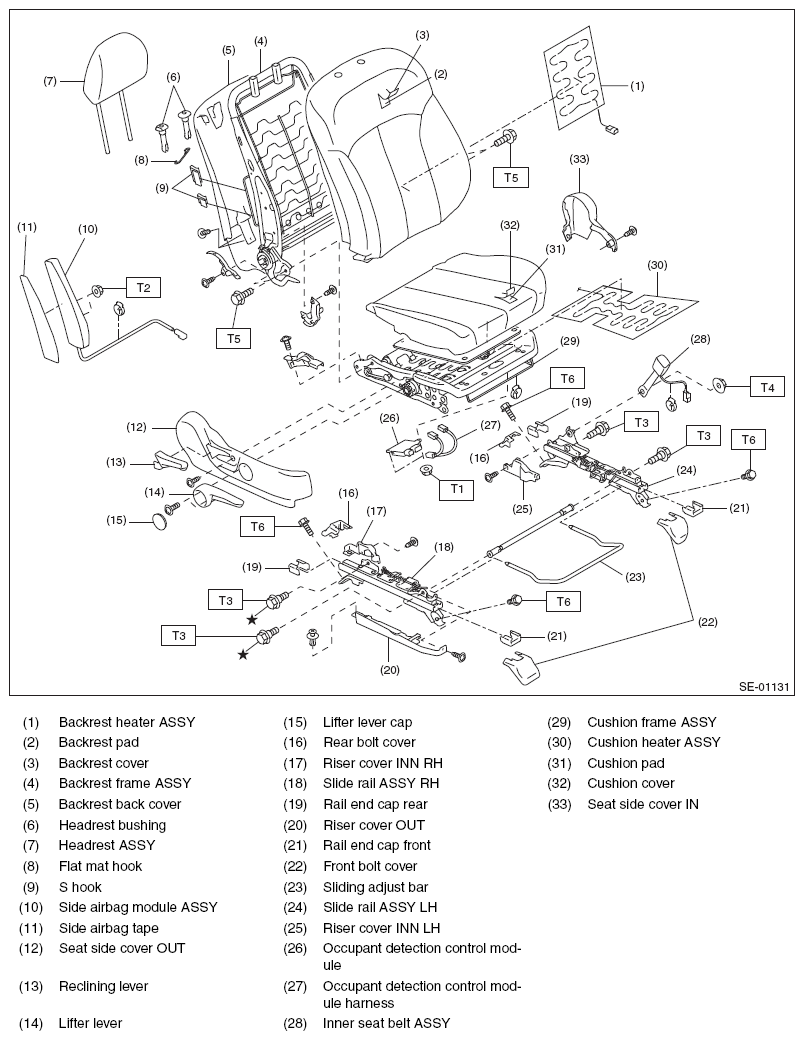

Fig 4: Front Seat Replacement Components With Torque Specifications (Power Seat RH)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.9 (0.6, 4.4)

T2: 6 (0.61, 4.4)

T3: 18 (1.84, 13.3)

T4: 38 (3.87, 28.0)

T5: 52 (5.30, 38.4)

T6: 53 (5.40, 39.1)
