Outer Mirror Assembly: Inspection
- Disconnect the outer mirror connector.
- Apply battery voltage between the outer mirror connector terminals and check the mirror operation.

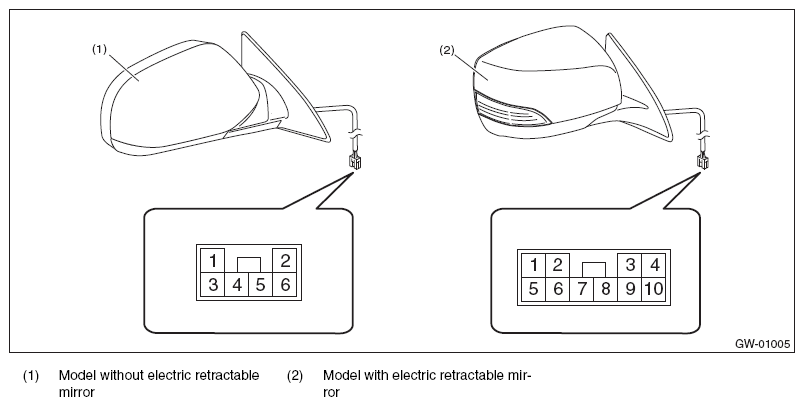

- Model without electric retractable mirror
Terminal No. Inspection conditions Switch position - - OFF 2 (+) - 5 (-) Apply battery voltage between terminals. UP 5 (+) - 2 (-) Apply battery voltage between terminals. DOWN 4 (+) - 2 (-) Apply battery voltage between terminals. LEFT 2 (+) - 4 (-) Apply battery voltage between terminals. RIGHT - Model with electric retractable mirror
Terminal No. Inspection conditions Switch position - - OFF 3 (+) - 8 (-) Apply battery voltage between terminals. UP 8 (+) - 3 (-) Apply battery voltage between terminals. DOWN 7 (+) - 3 (-) Apply battery voltage between terminals. LEFT 3 (+) - 7 (-) Apply battery voltage between terminals. RIGHT 2 (+) - 6 (-) Apply battery voltage between terminals. Folding 6 (+) - 2 (-) Apply battery voltage between terminals. Unfolding
- Model without electric retractable mirror
- If it does not operate normally, replace the outer mirror assembly.
