Outer Mirror Assembly: Removal

  1. Remove the front door trim. < Refer to FRONT DOOR , REMOVAL, Door Trim. >
  2. Remove the outer mirror assembly.
    1. Disconnect the connector.
    2. Remove the bolts to remove outer mirror assembly.

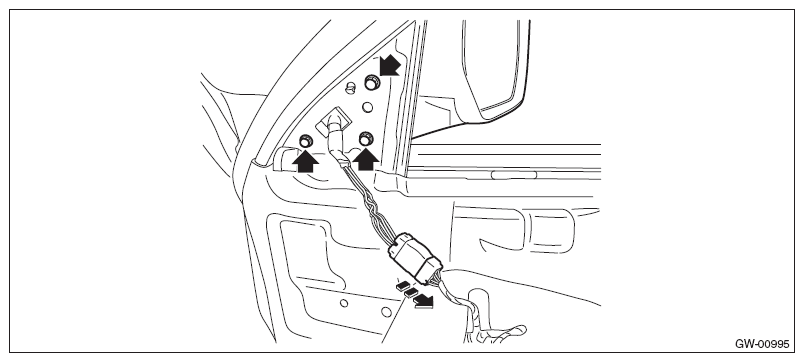

      Fig 1: Disconnecting Outer Mirror Assembly Connector
      G08584713Courtesy of SUBARU OF AMERICA, INC.
