Model With Electric Retractable Mirror

CAUTION:

When removing the mirror, be careful not to damage the back surface of mirror with a flat tip screwdriver.
When installing the mirror, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror surface upward.
Disconnect the ground cable from battery.
Remove the outer mirror.
1. Using a flat tip screwdriver, release the clips then remove the outer mirror by sliding downward.

  Fig 1: Removing Outer Mirror Using Flat Tip Screwdriver
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the mirror heater connector. (Model with mirror heater)

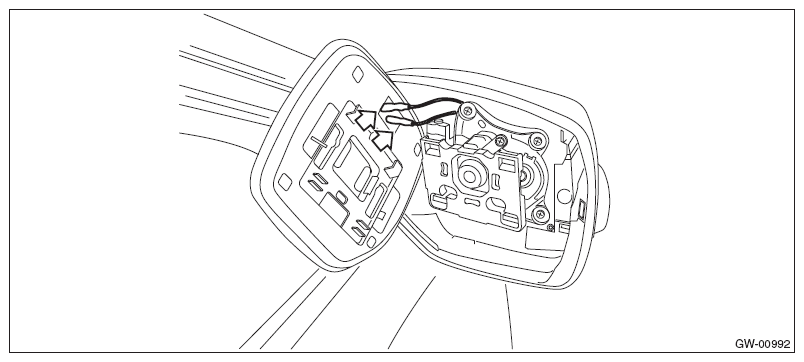

  Fig 2: Locating Mirror Heater Connector
  Courtesy of SUBARU OF AMERICA, INC.
Install the outer mirror in the reverse order of removal.
