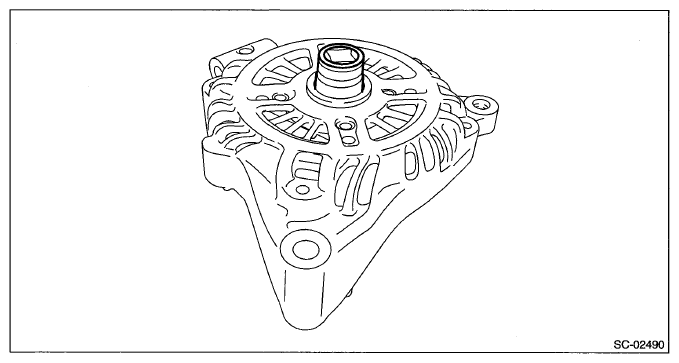

Starting System & Charging System (H4DO): Generator: Disassembly

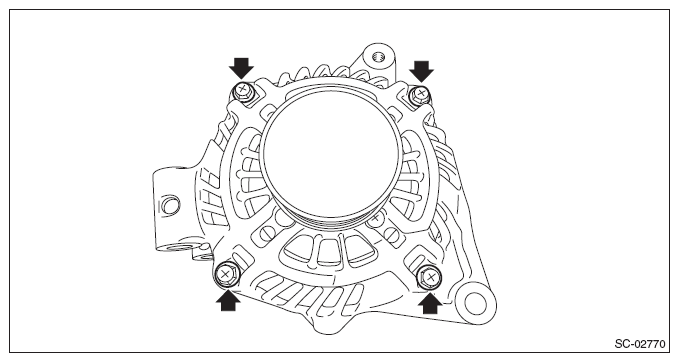

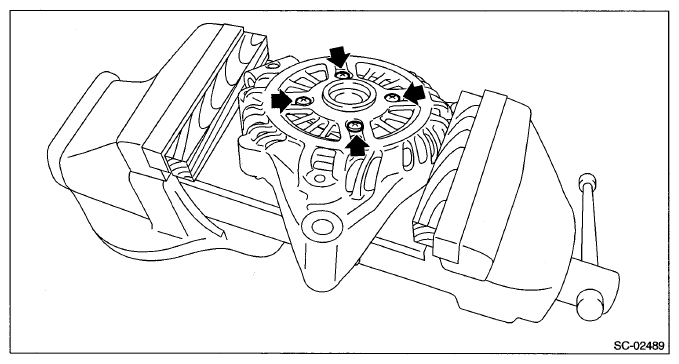

Remove the four through bolts.

Fig 1: Locating Generator Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.

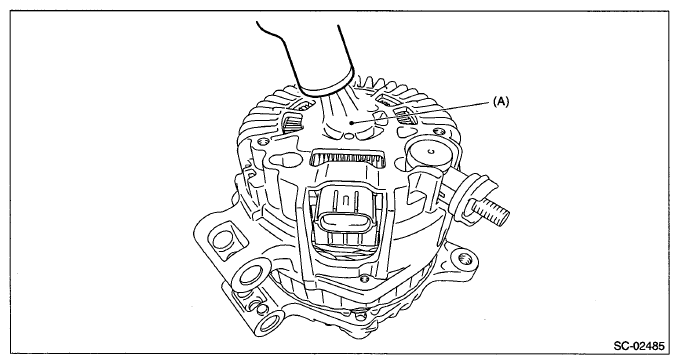

Use a drier to heat the rear cover (A) portion to 50 - 60°C (122 - 140°F).

Fig 2: Heating Rear Cover Portion Using Drier
Courtesy of SUBARU OF AMERICA, INC.

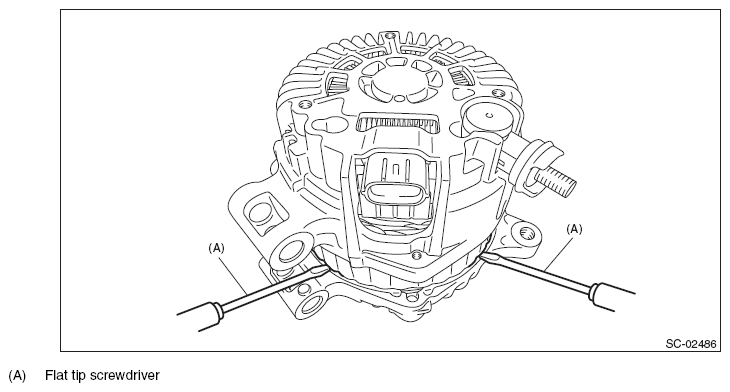

Insert the flat tip screwdriver into the gap between stator core and front cover to disassemble.

Fig 3: Inserting Flat Tip Screwdriver Into Gap Between Stator Core And Front Cover
Courtesy of SUBARU OF AMERICA, INC.

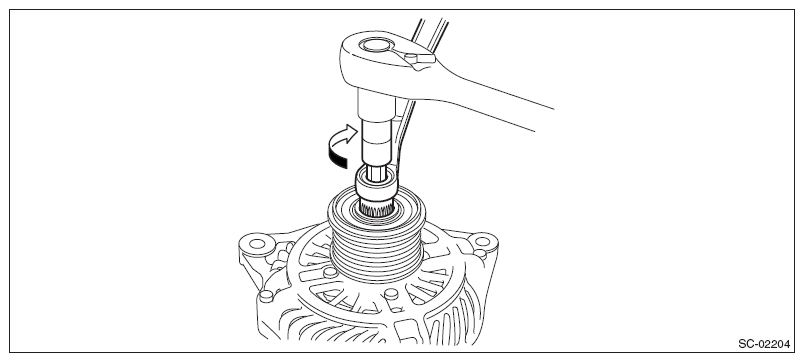

Hold the pulley with the ST, and turn the rotor side (hex bit socket) clockwise to remove the pulley.
ST 18366AA000 ADAPTER PULLEY

Fig 4: Turning Rotor Side (Hex Bit Socket) Clockwise Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

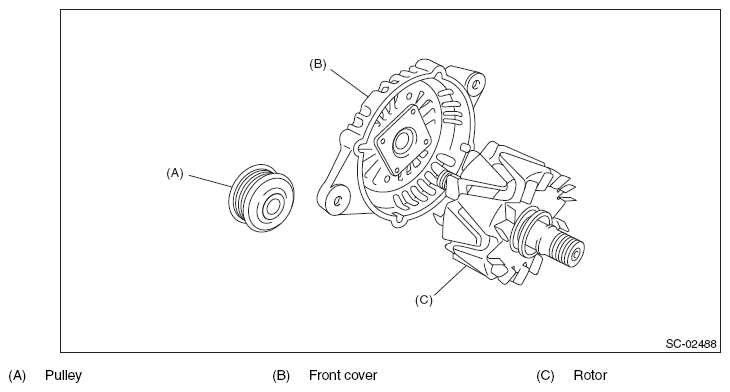

Fig 5: Identifying Pulley, Front Cover And Rotor
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the ball bearings.
1. Remove the bolt, and then detach the bearing retainer.

  Fig 6: Locating Bearing Retainer Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Firmly attach an appropriate tool (such as a correct size socket wrench) to the bearing inner race.

  Fig 7: Identifying Bearing Inner Race
  Courtesy of SUBARU OF AMERICA, INC.
3. Use the press to push the ball bearings out from the front cover.
Using the bearing puller, remove the bearings from the rotor.

Fig 8: Removing Bearings From Rotor Using Bearing Puller
Courtesy of SUBARU OF AMERICA, INC.

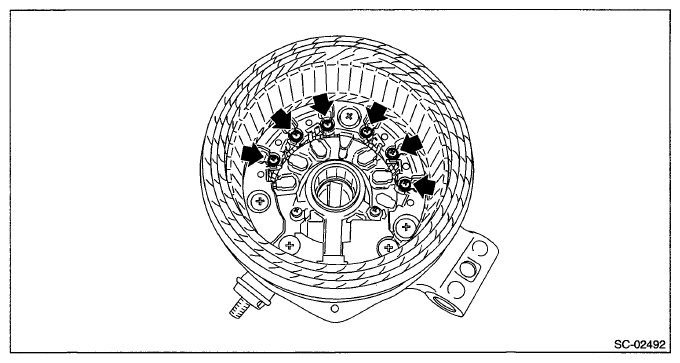

Remove six bolts which connect the rectifier and stator coil, then remove the stator coil.

Fig 9: Locating Rectifier And Stator Coil Bolts
Courtesy of SUBARU OF AMERICA, INC.

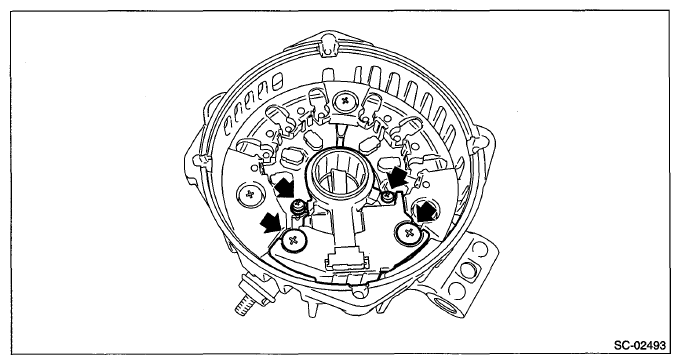

Remove four screws which secure the IC regulator to the rear cover, then remove the IC regulator.

Fig 10: Locating Rear Cover IC Regulator Bolts
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the brush.

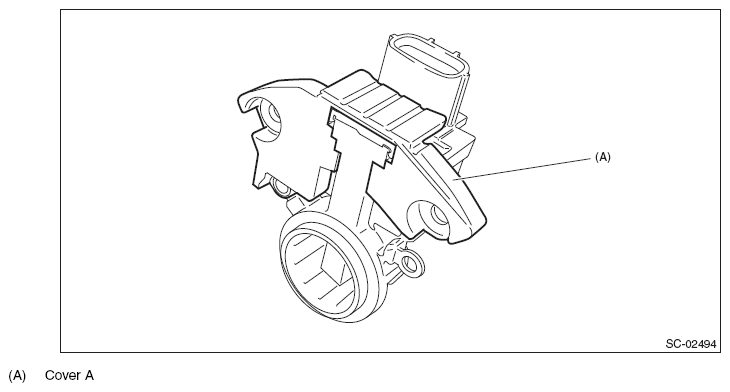

1. Remove the cover A.

  Fig 11: Identifying Brush Cover
  Courtesy of SUBARU OF AMERICA, INC.

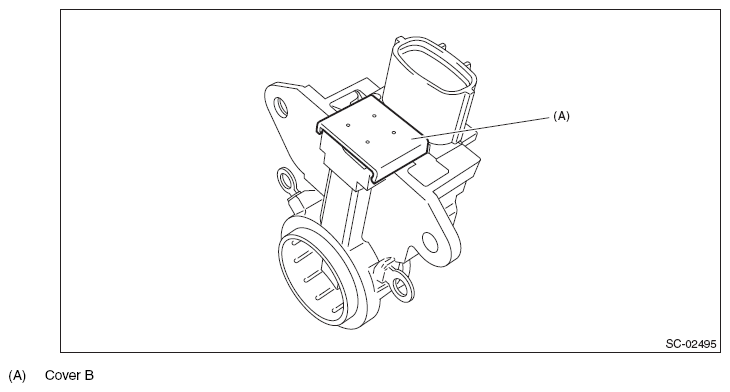

2. Remove the cover B.

  Fig 12: Identifying Generator Cover B
  Courtesy of SUBARU OF AMERICA, INC.

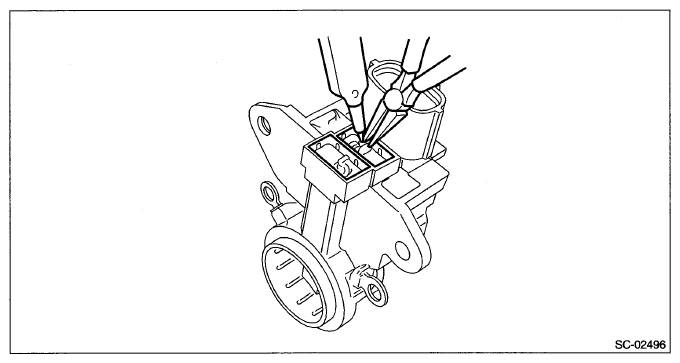

3. Disconnect the connection and remove the brush.

  Fig 13: Disconnecting Brush Connection
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rectifier as follows.

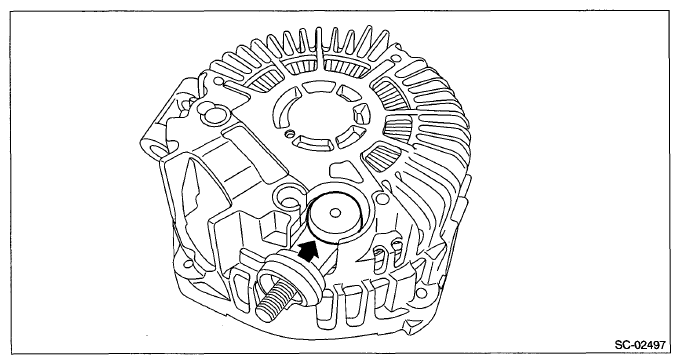

1. Remove the cover on terminal B.

  Fig 14: Locating Rectifier Terminal B Cover
  Courtesy of SUBARU OF AMERICA, INC.

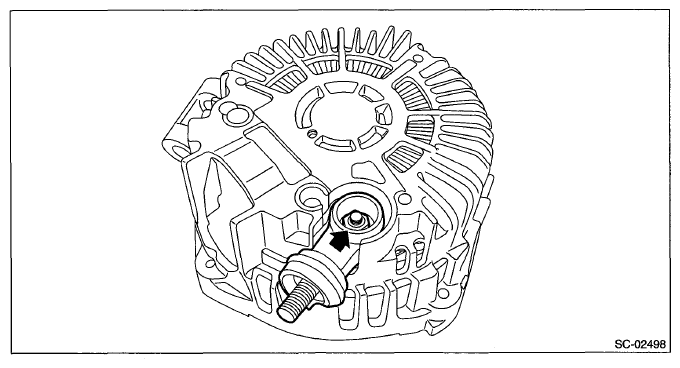

2. Remove the nut on terminal B.

  Fig 15: Locating Rectifier Terminal B Nut
  Courtesy of SUBARU OF AMERICA, INC.

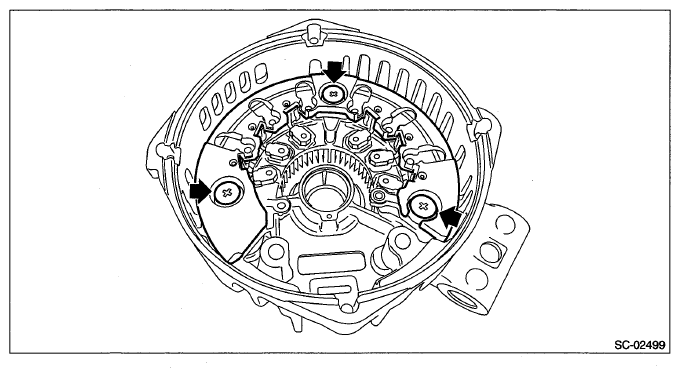

3. Remove the bolts which secure the rectifier, and remove the rectifier.

  Fig 16: Locating Rectifier Securing Bolts
  Courtesy of SUBARU OF AMERICA, INC.
